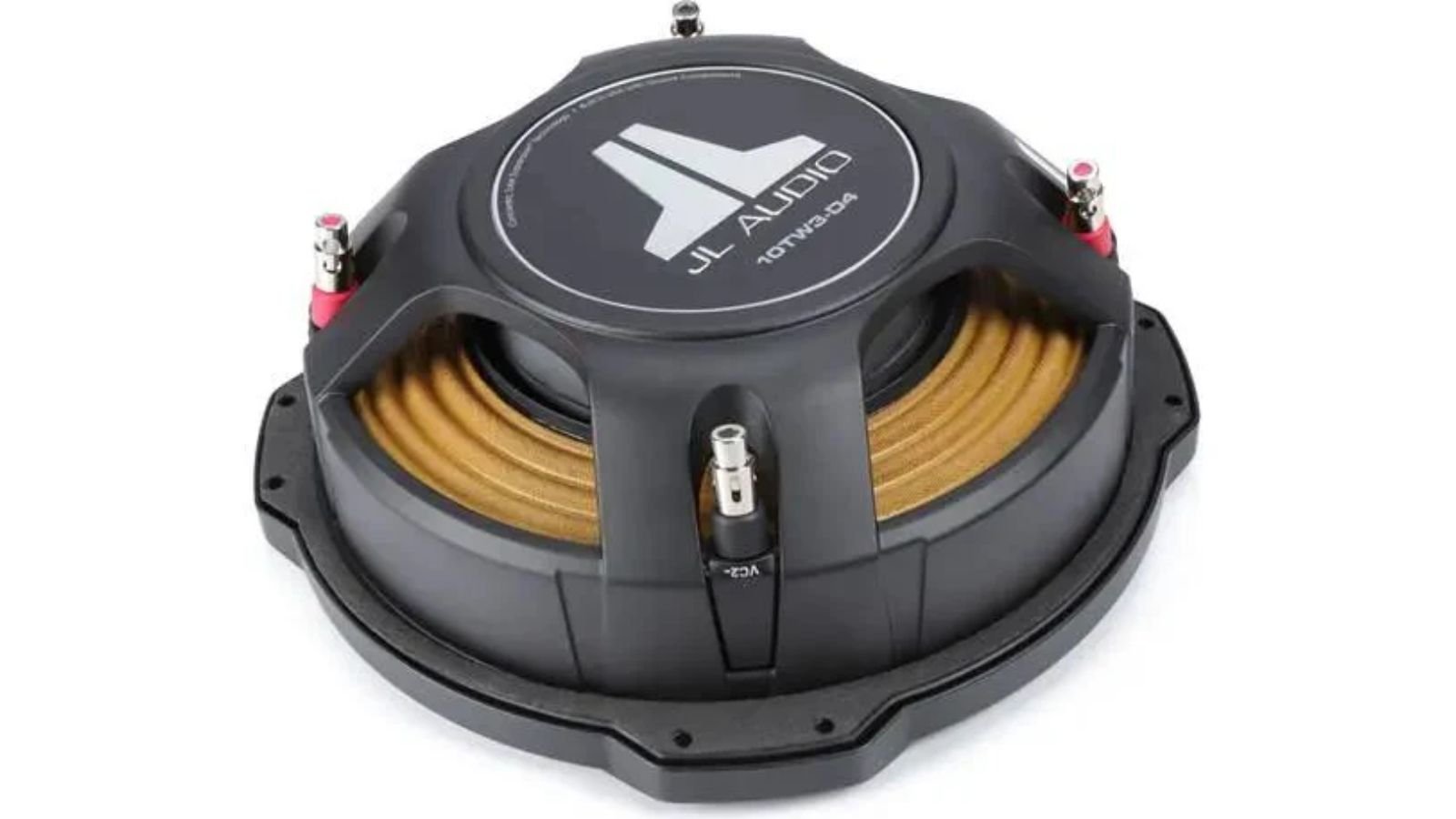

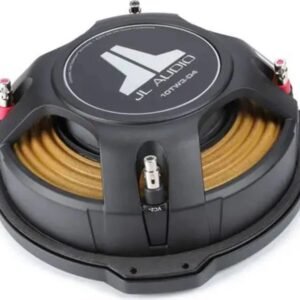

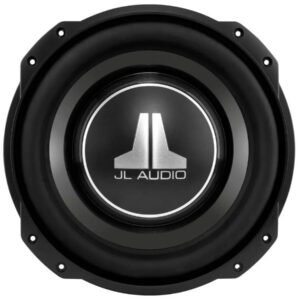

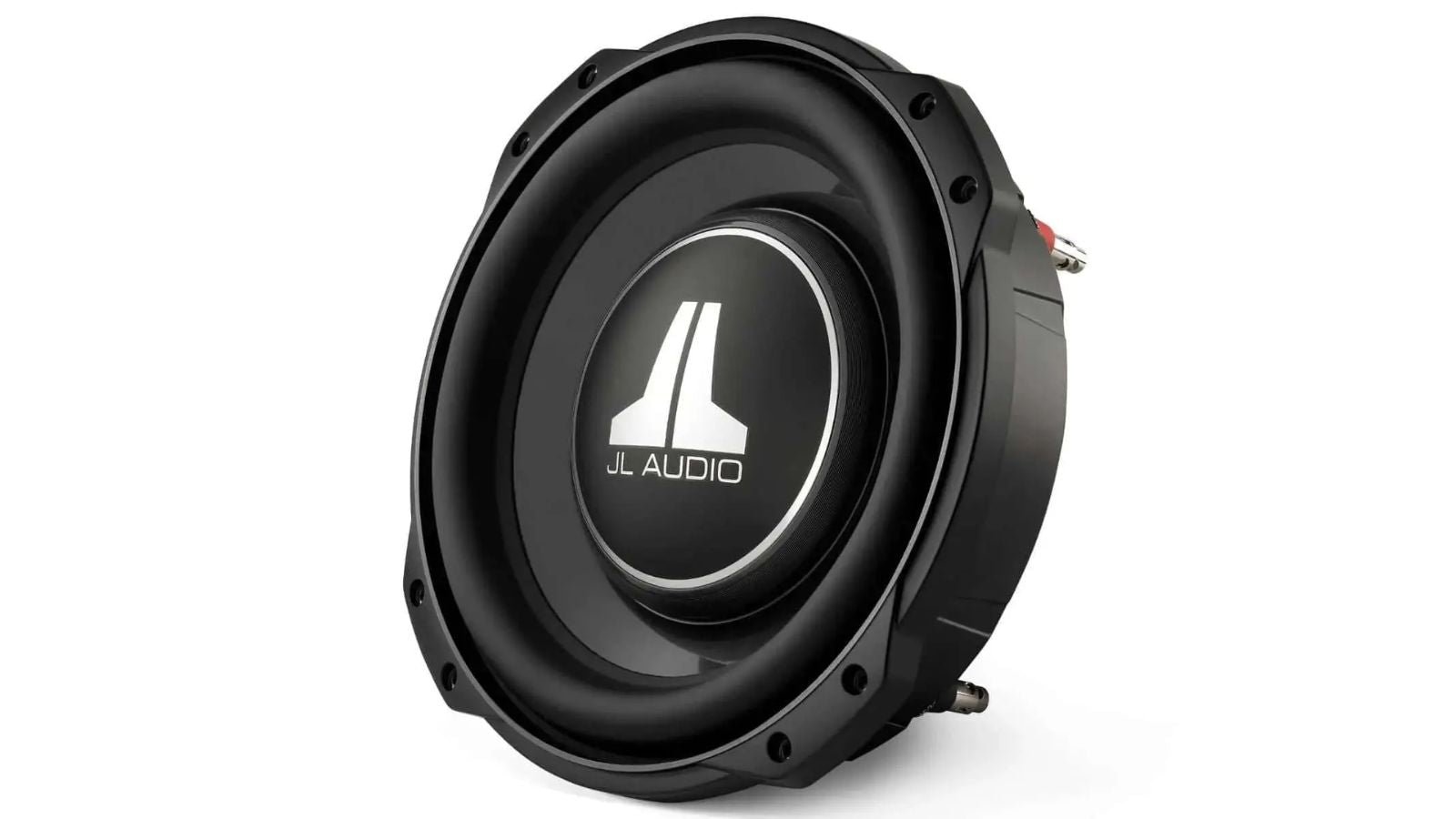

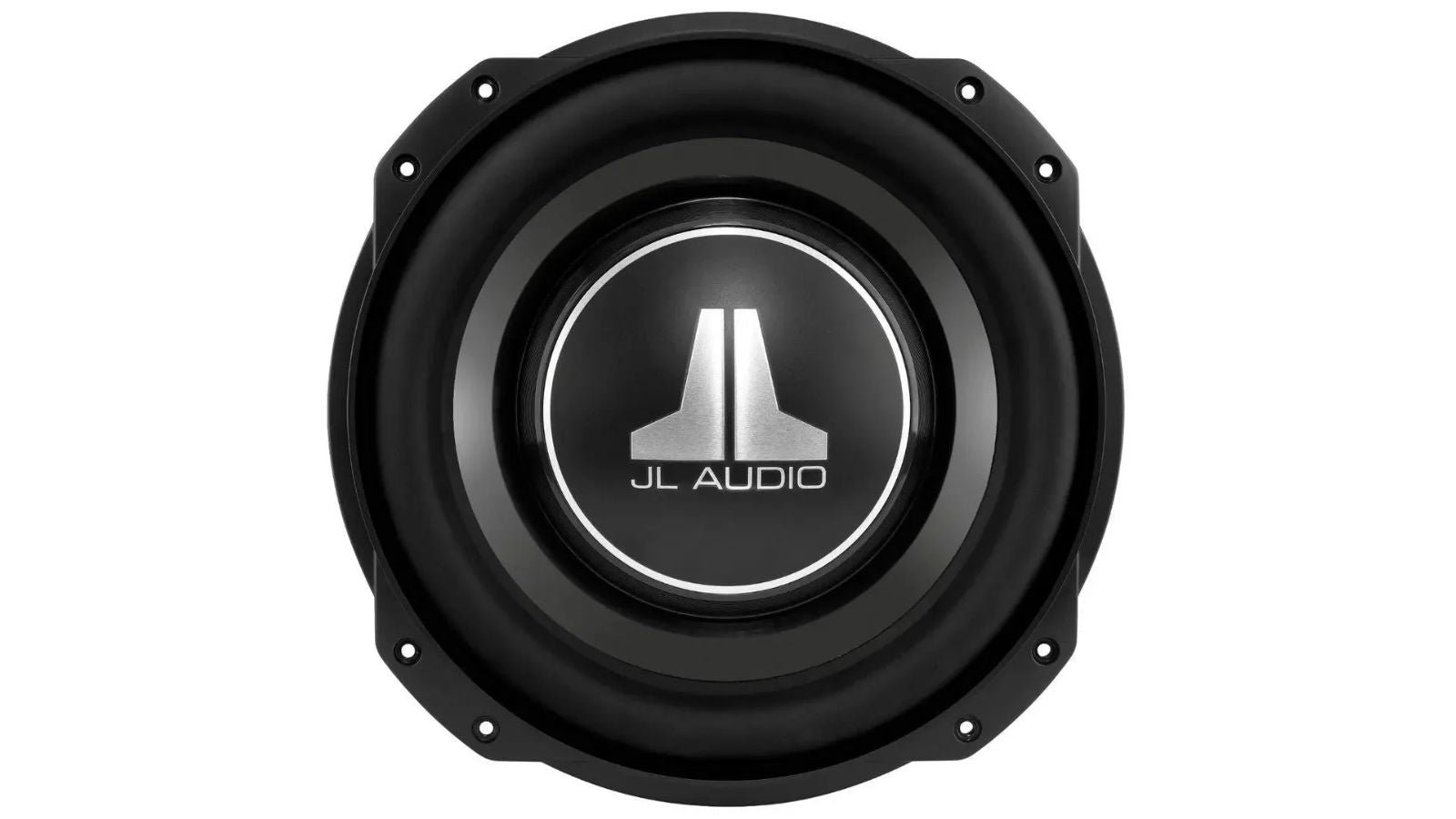

JL Audio 10TW3-D4 10 inch Shallow Subwoofer
$519.99
JL Audio 10TW3-D4 10 inch Shallow Subwoofer: a 10-inch subwoofer rated 400 watts RMS, offered in 2 ohms or 8 ohms.
Sized to your subwooferTell us the sub model and vehicle before you order and we confirm the airspace actually matches the spec sheet.
ShippingMost enclosures ship freight or parcel depending on size; exact carrier and timeline depend on your build and are confirmed before the order ships. Shipping policy.
WarrantyWarranty terms are set per manufacturer and per build; ask before you order and we will confirm what applies to your specific enclosure or subwoofer. Warranty.
JL Audio 10TW3-D4 10 inch Shal...
$519.99
JL Audio 10TW3-D4 10 inch Shallow Subwoofer: a 10-inch subwoofer rated 400 watts RMS, offered in 2 ohms or 8 ohms.
Published parameters: Fs 32.3 Hz, Qts 0.62, Vas 19.82 L, Xmax 4 mm. Those three numbers decide the box; the amplifier only decides how loud it gets.
The manufacturer recommends 0.5 cubic feet sealed or 0.75 cubic feet ported. We cut enclosures to those figures; ask if you want this driver boxed.
Pair the amplifier against RMS, not peak, and wire the voice coils to an impedance the amp is stable at.
Questions on fit or matching? Call or text (775) 541-2950 with your vehicle and the gear you are running.
Listed specifications
- JL Audio 10TW3-D4 10 Inch Subwoofer
- 400W RMS 3.25 in Depth 15.2mm Xmax Dual 4-Ohm
- 3.25 in Mounting Depth
- 400W RMS Power
- 15.2mm Xmax in 3.25 Inches
- Dual 4-Ohm | Qts 0.620 | Fs 32.3 Hz | Vas 19.82 L
- 50.0 Hz
- 40.1 Hz
- 47.0 Hz
- 38.9 Hz
