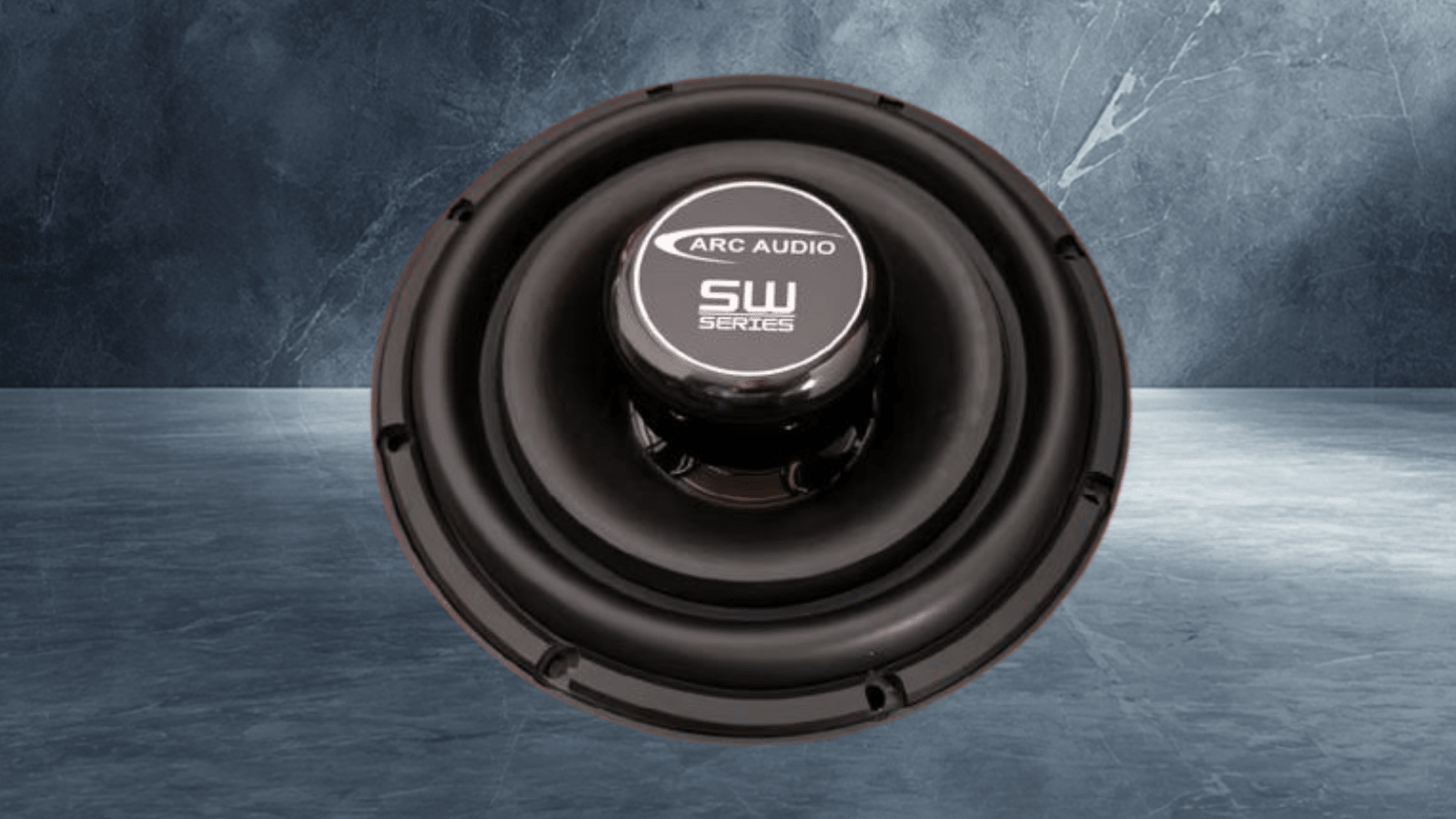

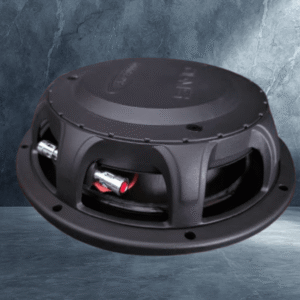

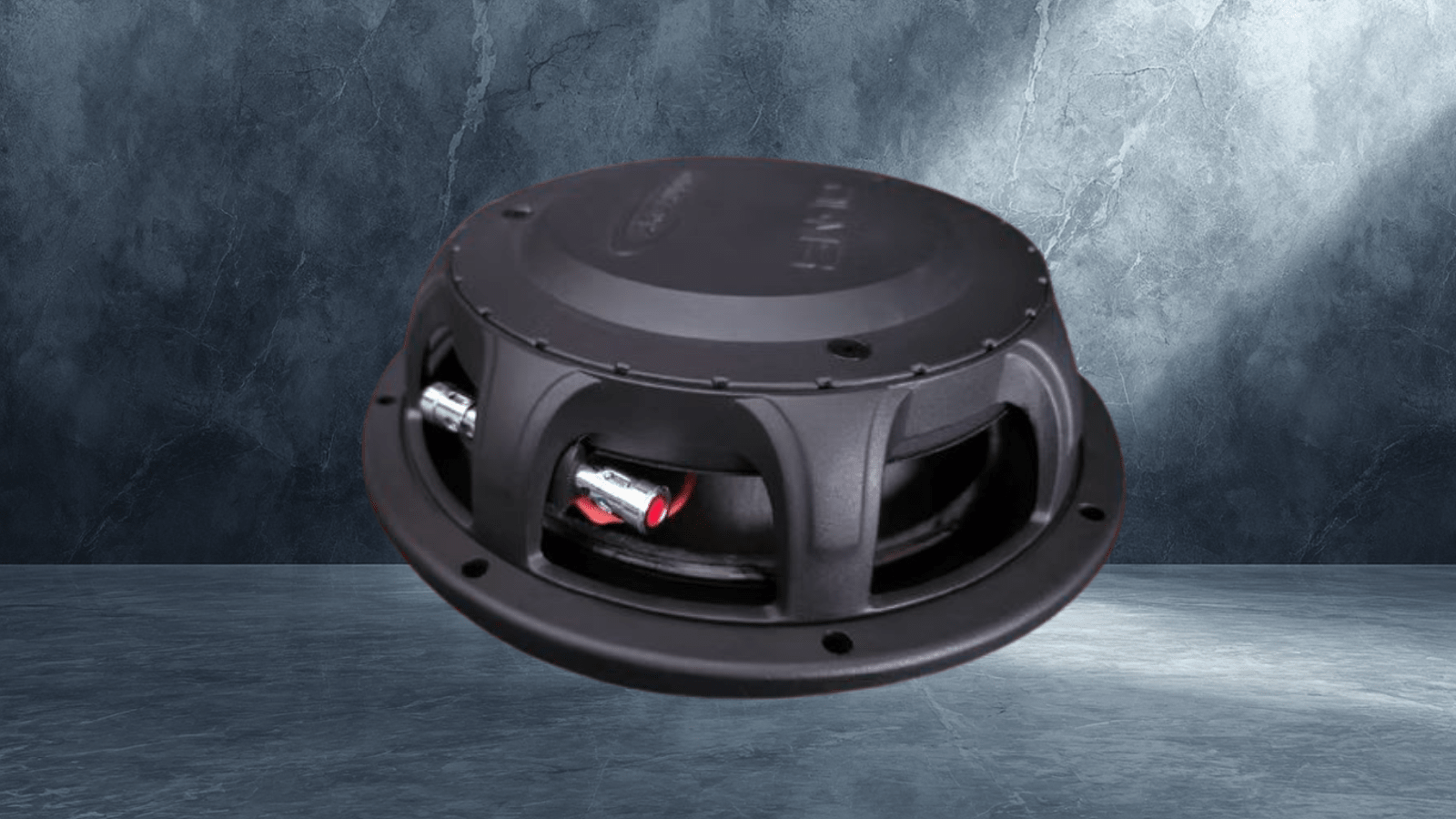

Arc Audio SW10 10 Inch Shallow-Mount Subwoofer

Arc Audio SW10 10 Inch Shallow-Mount Subwoofer: a 10-inch subwoofer, offered in 1 ohm.

Published parameters: Fs 39 Hz, Qts 0.634, Vas 13.33 L, Xmax 2.4 mm. Vas and Qts set the enclosure volume this driver wants; Xmax sets how much air it can move before the suspension runs out.

The enclosure is half the product. Tell us the vehicle and we will match this driver to a sealed or ported box that suits the space.

RMS is the figure to buy an amplifier against. Peak ratings are marketing; the coil impedance decides what the amp actually delivers.

Available as Dual 4ohm or Dual 2ohm; tell us which you want in the order notes.

Questions on fit or matching? Call or text (775) 541-2950 with your vehicle and the gear you are running.

Listed specifications

• Arc Audio SW10 10 Inch Shallow-Mount Subwoofer
• 2.4 in Depth 14.7mm Xmax N42UH Neodymium D2 or D4
• 2.4 in Mounting Depth
• SW10 D2 (Parallel) | Qts 0.634 | Fs 39 Hz | Vas 13.33 L
• 57.5 Hz
• 46.7 Hz
• 52.1 Hz
• 44.9 Hz
• 49.2 Hz
• 44.1 Hz
