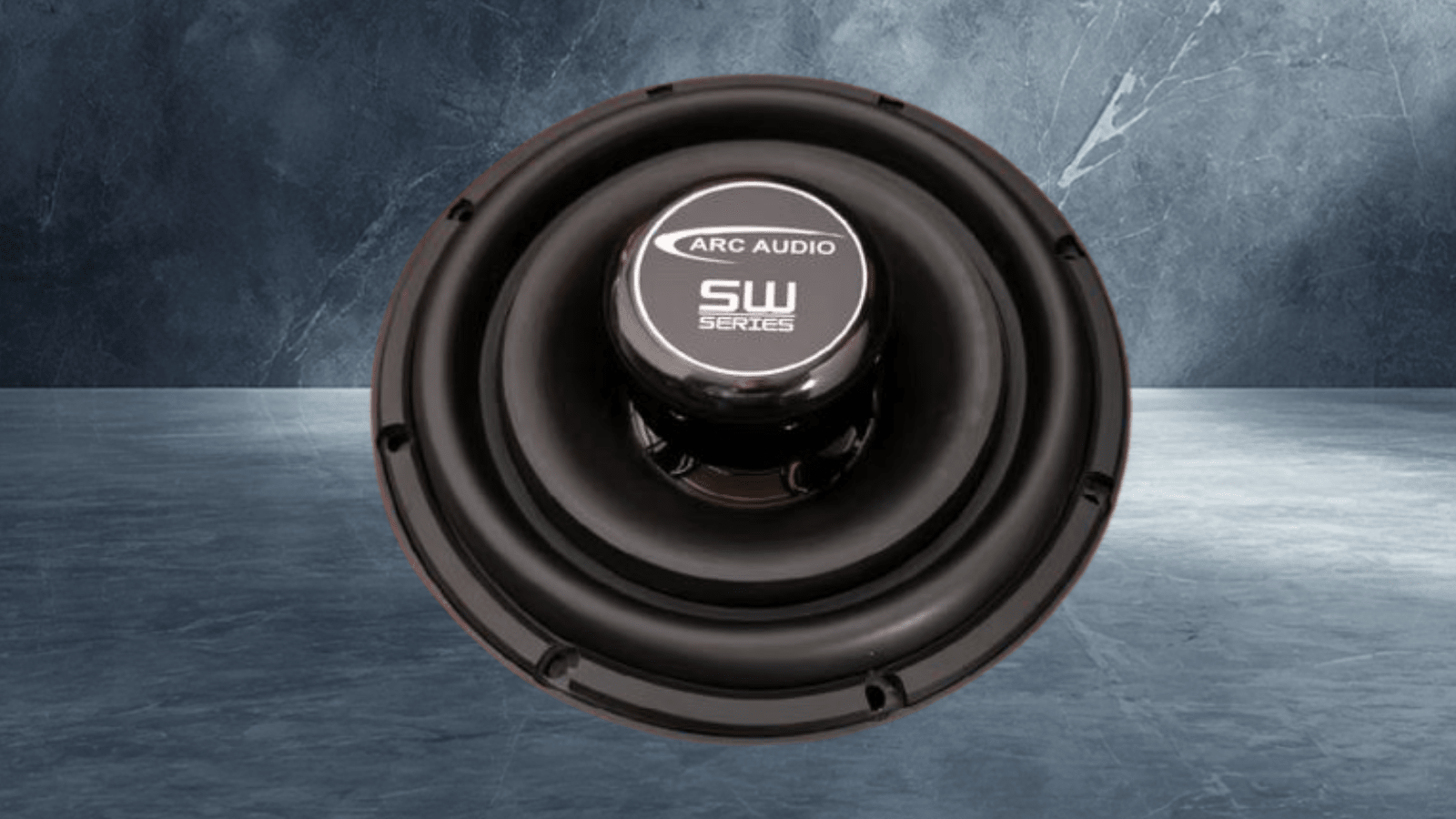

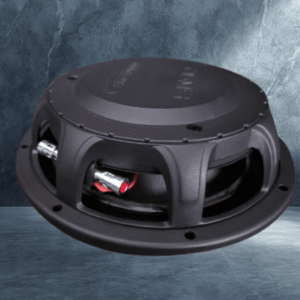

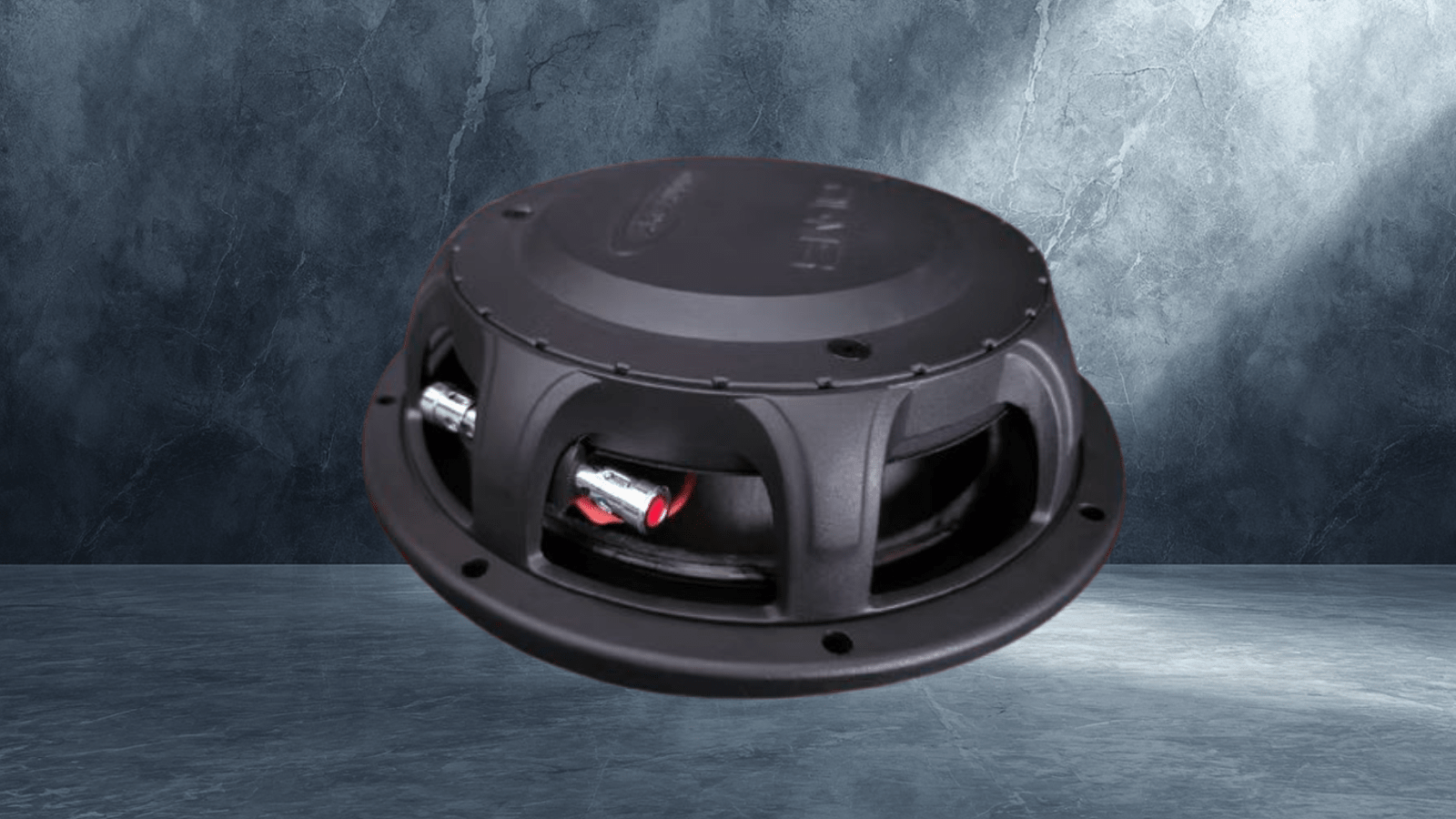

Arc Audio SW12 12 Inch Shallow-Mount Subwoofer

Arc Audio SW12 12 Inch Shallow-Mount Subwoofer: a 12-inch subwoofer rated 400 watts RMS, offered in 1 ohm, 2 ohm, 4 ohm or 8 ohm.

Published parameters: Fs 33 Hz, Qts 0.616, Vas 33.73 L, Xmax 400 mm. Those three numbers decide the box; the amplifier only decides how loud it gets.

The manufacturer recommends 0.8 cubic feet sealed. We cut enclosures to those figures; ask if you want this driver boxed.

Pair the amplifier against RMS, not peak, and wire the voice coils to an impedance the amp is stable at.

Available as Dual 4ohm or Dual 2ohm; tell us which you want in the order notes.

Questions on fit or matching? Call or text (775) 541-2950 with your vehicle and the gear you are running.

Listed specifications

• A real 12-inch SQ driver in 2.625 inches of mounting depth
• 2.625" Mounting Depth 15.5mm Xmax 400W RMS Neo Motor D2 or D4
• 400 / 800 watts RMS / peak
• A Full 12 in 2.625 Inches
• Stage-Baked 3-Inch Coil
• SW12 D4 (Parallel) | Qts 0.616 | Fs 33 Hz | Vas 33.73 L
• 55.5 Hz
• 43.0 Hz
• 52.1 Hz
• 41.5 Hz
