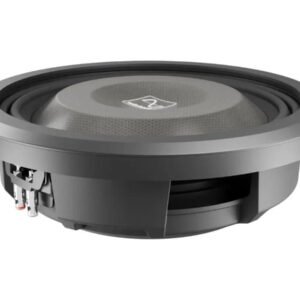

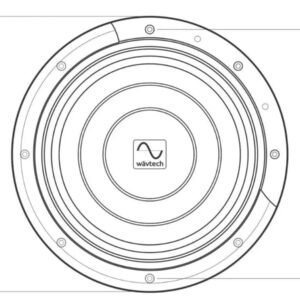

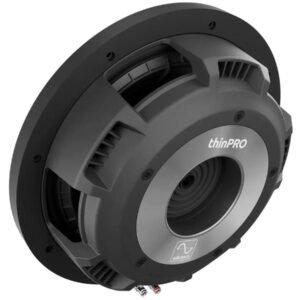

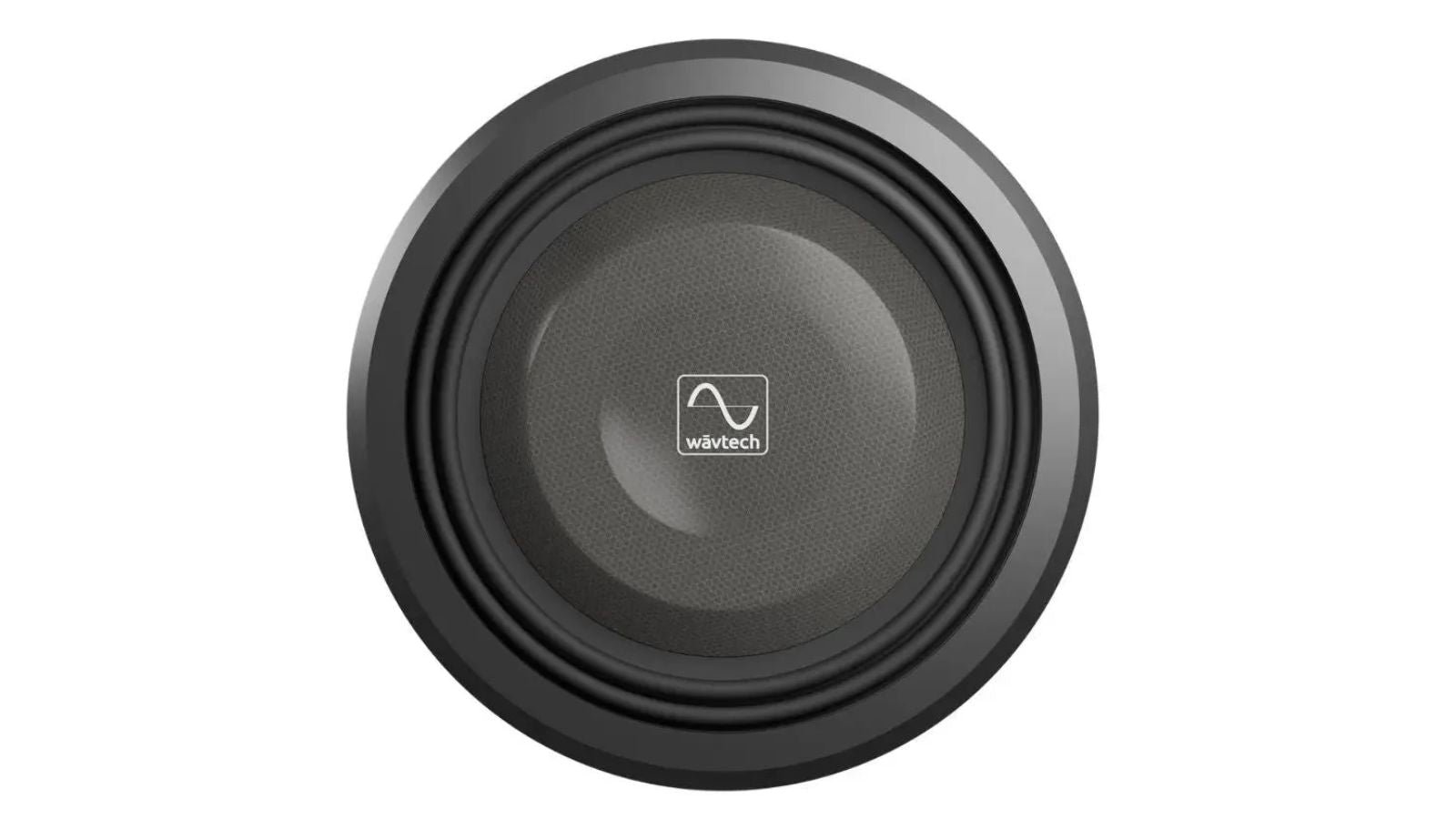

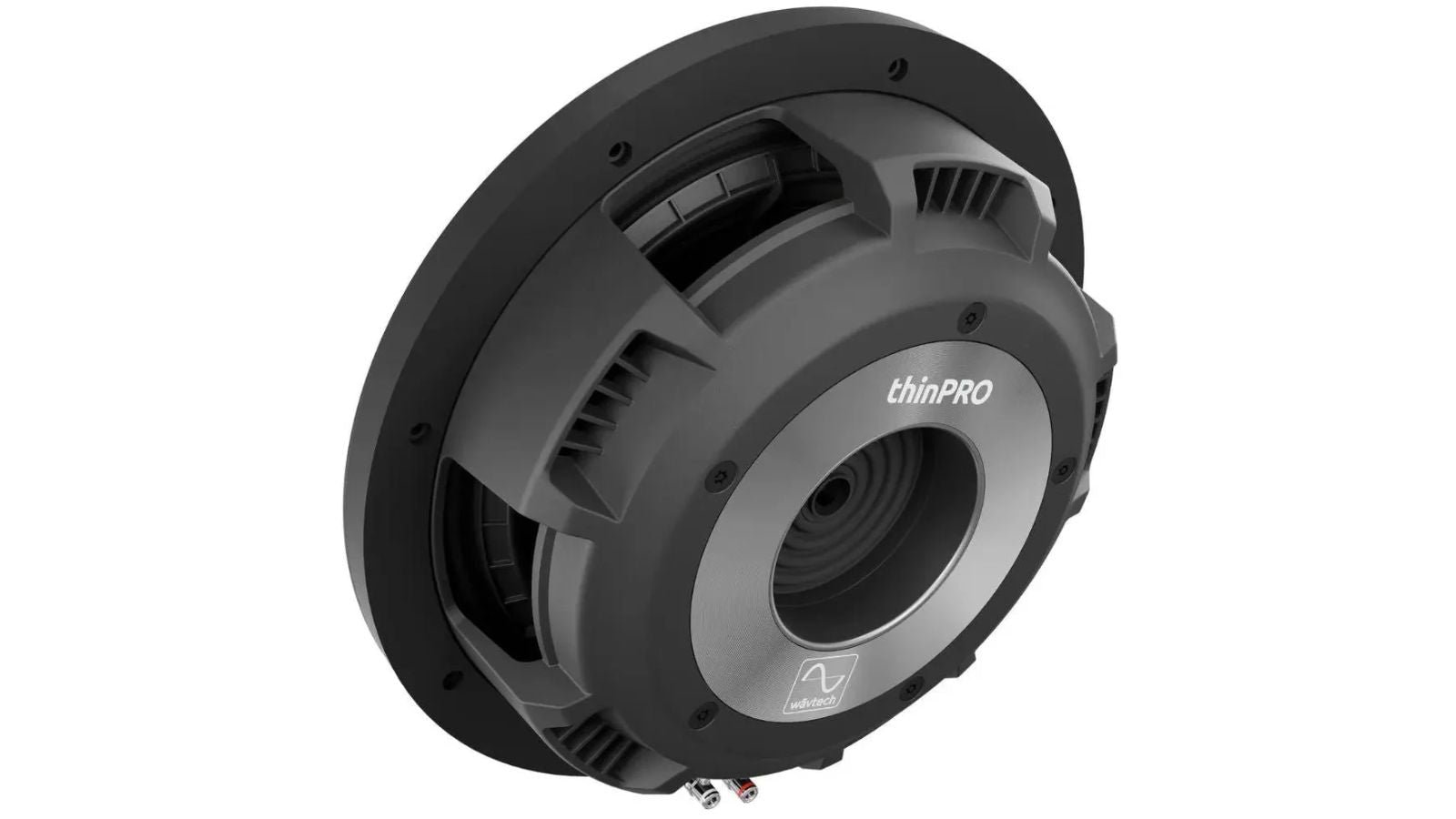

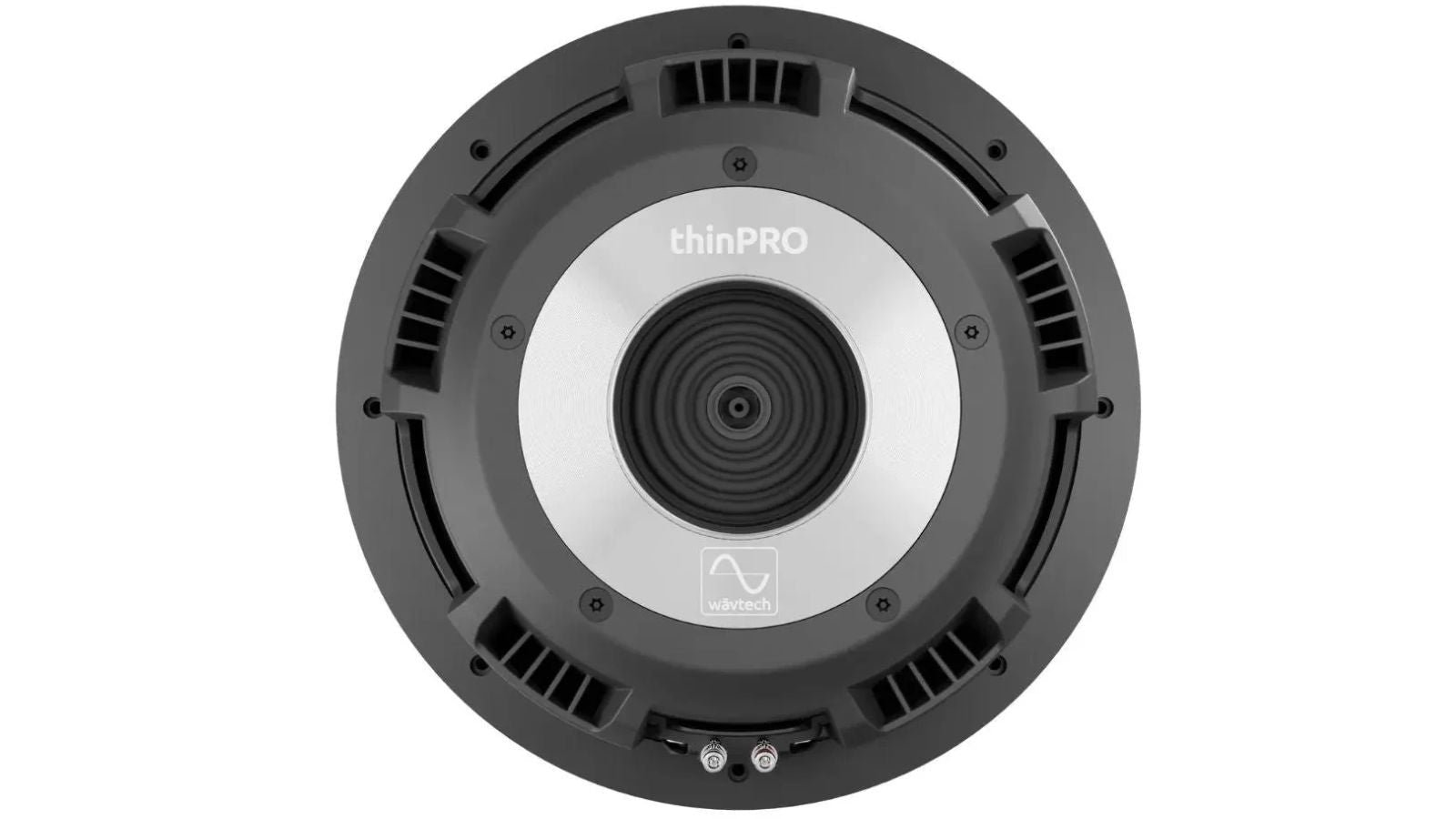

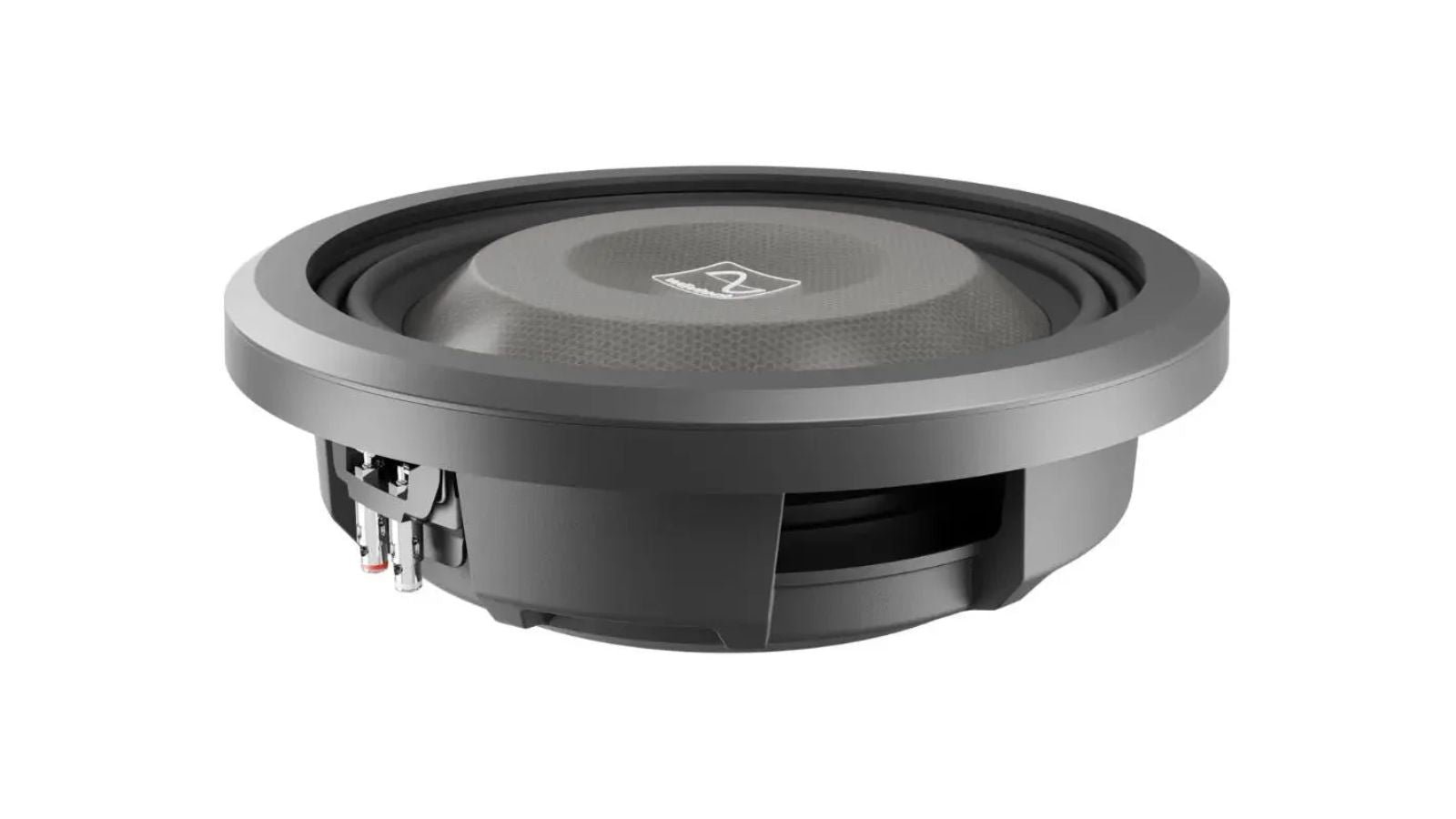

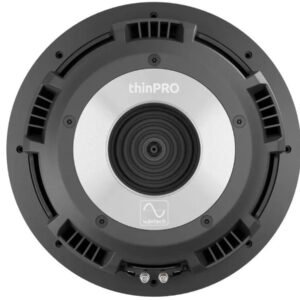

Wavtech thinPRO12 Shallow-Mount 12 inch Subwoofer

Wavtech thinPRO12 Shallow-Mount 12 inch Subwoofer: a 12-inch subwoofer rated 750 watts RMS, offered in 1 ohm, 2 ohm, 2 ohms or 4 ohm.

Published parameters: Fs 25 Hz, Qts 0.49, Vas 42 L, Xmax 2 mm. Vas and Qts set the enclosure volume this driver wants; Xmax sets how much air it can move before the suspension runs out.

The manufacturer recommends 1 cubic feet sealed or 1 cubic feet ported. We cut enclosures to those figures; ask if you want this driver boxed.

RMS is the figure to buy an amplifier against. Peak ratings are marketing; the coil impedance decides what the amp actually delivers.

Available as 2 Ohm or 4 Ohm; tell us which you want in the order notes.

Questions on fit or matching? Call or text (775) 541-2950 with your vehicle and the gear you are running.

Listed specifications

• Wavtech thinPRO12 12 Inch Shallow-Mount Subwoofer
• 750W RMS 3 in Depth 20mm Xmax 2 Ohm or 4 Ohm SVC
• 54mm of Throw from 3 Inches of Depth
• 3 in Mounting Depth
• 750W RMS Power
• 28 Hz F3 Ported
• 5 Inch Voice Coil on Vented Polyimide Former
• 2 Ohm or 4 Ohm: Single Voice Coil
• thinPRO12-2 | Qts 0.49 | Fs 25 Hz | Vas 42 L
• 54.2 Hz
