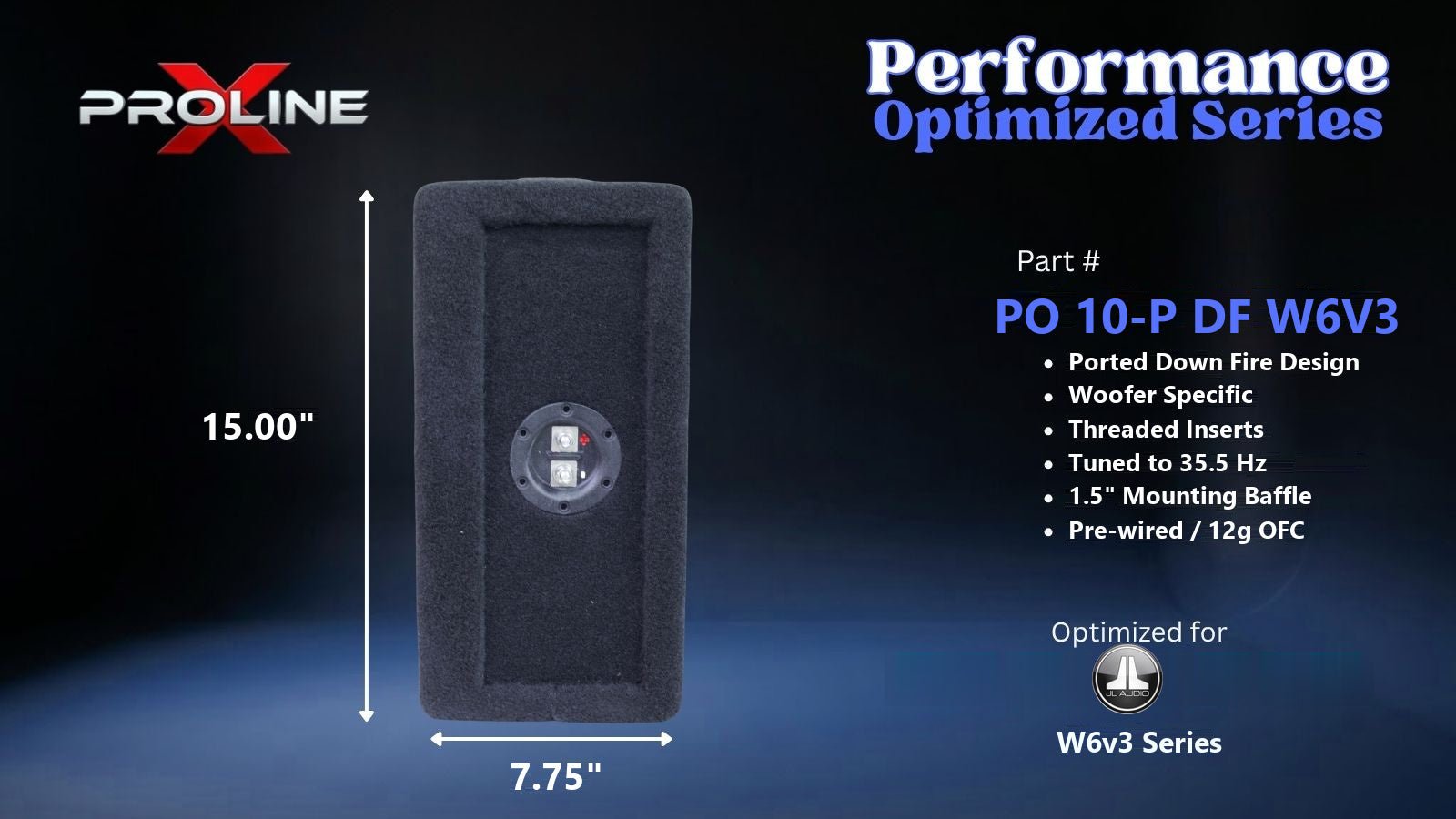

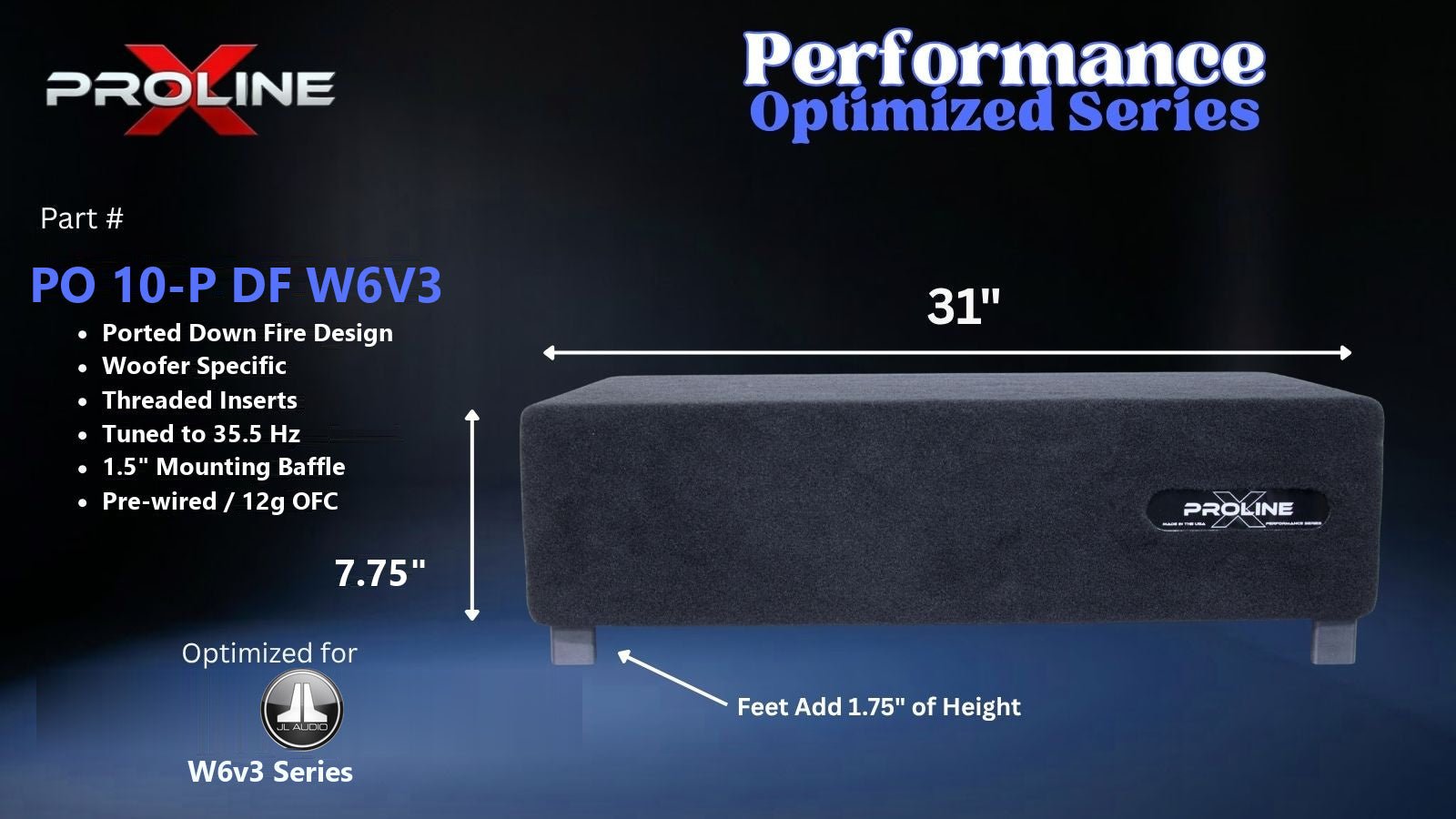

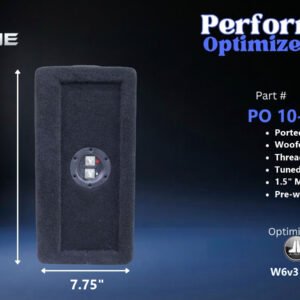

JL Audio 10W6v3 Ported Down Fire Enclosure, Single 10″

JL Audio 10W6v3 ported down fire enclosure, single 10-inch, with 1.22 cubic feet of net airspace tuned to 35.5 Hz through 20.3 square inches of port; the anechoic F3 is 29.8 Hz.

Tuning at 35.5 Hz is where the port takes over from the cone. Above it the box behaves like a large sealed enclosure; around it output rises several dB for the same power; below it the cone unloads, so set a subsonic filter 5 to 10 Hz under tuning.

20.3 square inches of port area keeps air velocity down at high output, so the port does not chuff when the music gets loud.

The baffle faces the floor, which keeps cargo off the cone and leaves a flat top you can load on.

Construction: 3/4-inch MDF with a double-layer 1.5-inch front baffle, the outer layer recessed so the driver sits flush, V-groove and dado joinery at the panel seams. Polyfill pre-installed and terminal cup fitted.

The published figures are for the dual 2 ohm versions of the driver. Not sure the driver matches? Send us the model number and we will check it against the spec sheet before you order.

Questions on fit or matching? Call or text (775) 541-2950 with your vehicle and the gear you are running.

Specifications

• Enclosure type: Ported
• Drivers: Single, 10-inch
• Net volume: 1.22 cu ft
• Tuning: 35.5 Hz
• Port area: 20.3 sq in
• F3 (anechoic): 29.8 Hz
• Height: 20.3 in
• Front baffle: Double layer, 1.5 in
• Fits: JL Audio 10W6v3
