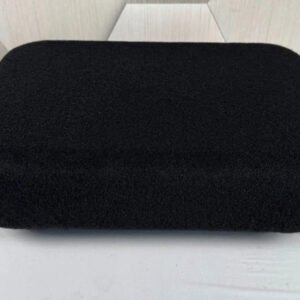

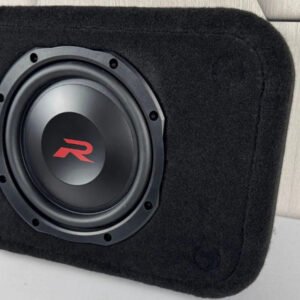

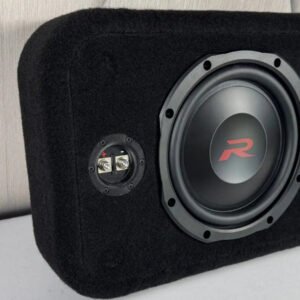

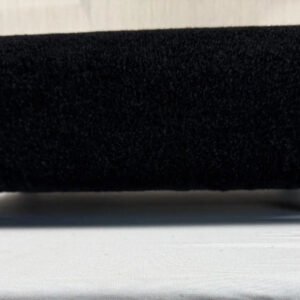

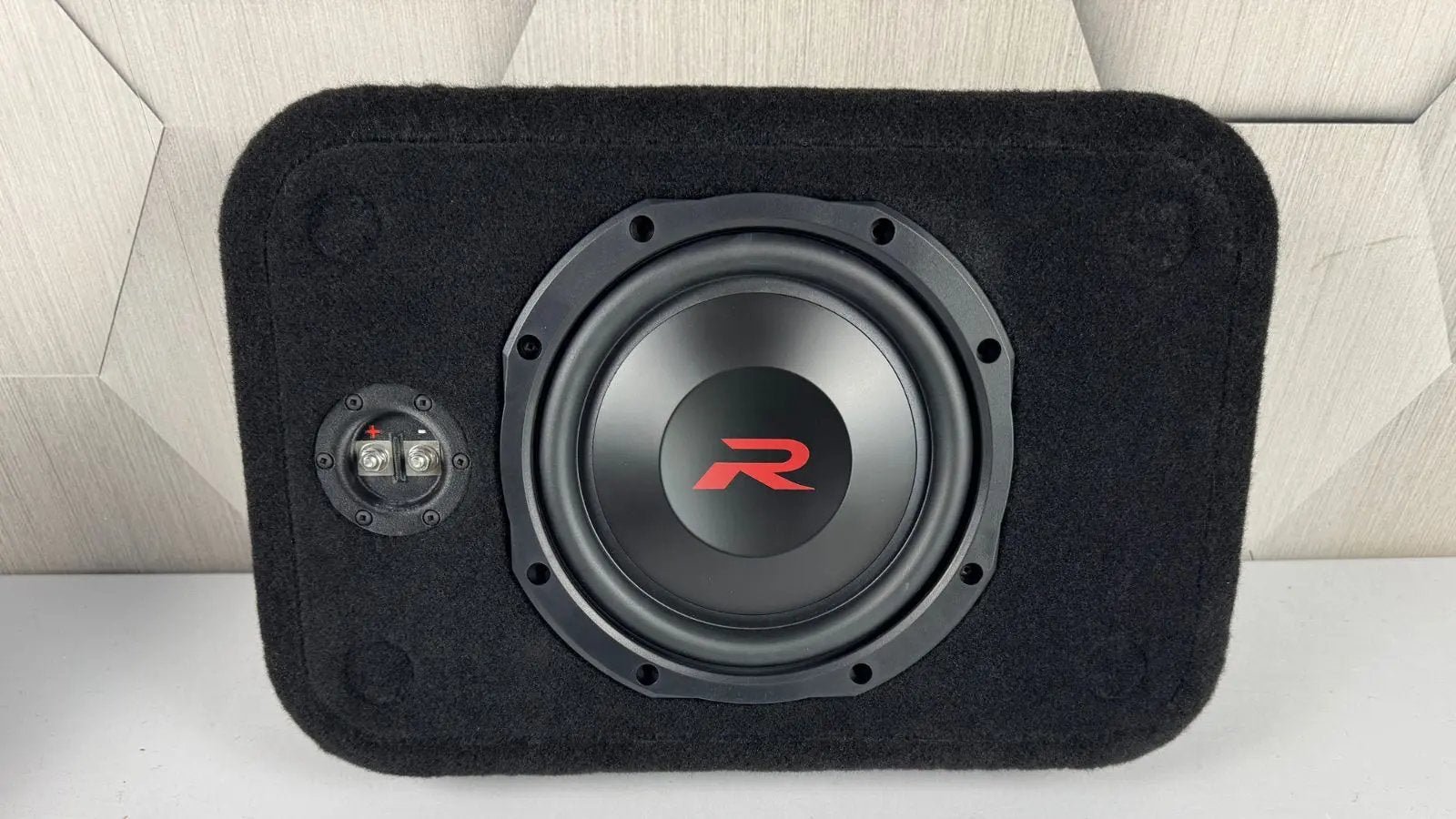

Single Shallow 10″ Sealed Subwoofer Enclosure, Loaded with Alpine RSW10

Single shallow 10-inch sealed subwoofer enclosure loaded with Alpine RSW10, with 0.5 cubic feet of net airspace at a system Qtc of 1.489-1.937 and an anechoic F3 of 34.1 Hz.

At Qtc 1.489-1.937 the box is small for the driver and the response peaks before it falls away. It is the right call where space is the constraint and output per cubic foot matters.

Shallow build for limited depth behind a seat or in a hatch; the mounting-depth figure below is the one to check.

Construction: 3/4-inch MDF, V-groove and dado joinery at the panel seams. Carpeted in black, polyfill pre-installed and pre-wired terminal cup fitted.

Check your driver's mounting depth against the 3.25-inch figure in the specifications. If you are between two drivers, send both model numbers and we will tell you which one this volume suits.

Questions on fit or matching? Call or text (775) 541-2950 with your vehicle and the gear you are running.

Specifications

• Enclosure type: Sealed
• Drivers: Single, 10-inch
• Net volume: 0.5 cu ft
• System Qtc: 1.489-1.937
• F3 (anechoic): 34.1 Hz
• Max driver mounting depth: 3.25 in
• Front baffle: 3/4 in MDF
• Loaded with: Alpine RSW10
