Dayton Audio Reference RSS460HO Ported Enclosure, Single 18″

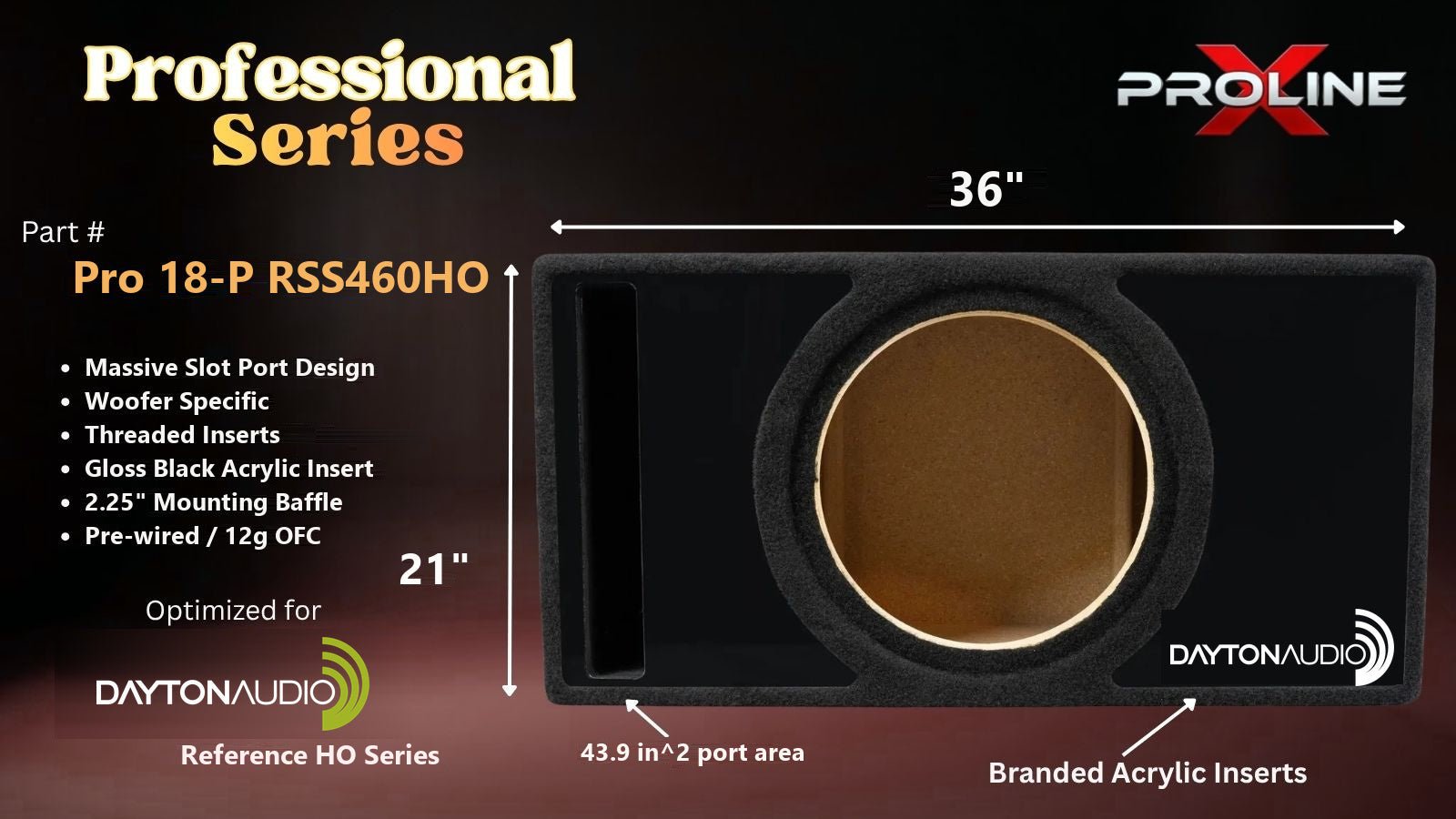

Dayton Audio Reference RSS460HO ported enclosure, single 18-inch, with 2.91 cubic feet of net airspace tuned to 30.5 Hz through 43.9 square inches of port; the anechoic F3 is 32.1 Hz.

Tuning at 30.5 Hz is where the port takes over from the cone. Above it the box behaves like a large sealed enclosure; around it output rises several dB for the same power; below it the cone unloads, so set a subsonic filter 5 to 10 Hz under tuning.

43.9 square inches of port area keeps air velocity down at high output, so the port does not chuff when the music gets loud.

Polyfill pre-installed.

Check your driver's mounting depth against the 8.94-inch figure in the specifications. Not sure the driver matches? Send us the model number and we will check it against the spec sheet before you order.

Questions on fit or matching? Call or text (775) 541-2950 with your vehicle and the gear you are running.

Specifications

• Enclosure type: Ported
• Drivers: Single, 18-inch
• Net volume: 2.91 cu ft
• Tuning: 30.5 Hz
• Port area: 43.9 sq in
• F3 (anechoic): 32.1 Hz
• Max driver mounting depth: 8.94 in
• Height: 14 in
• Width: 36 in
• Depth: 14 in
• Front baffle: Double layer, 1.5 in
• Fits: Dayton Audio Reference RSS460HO
