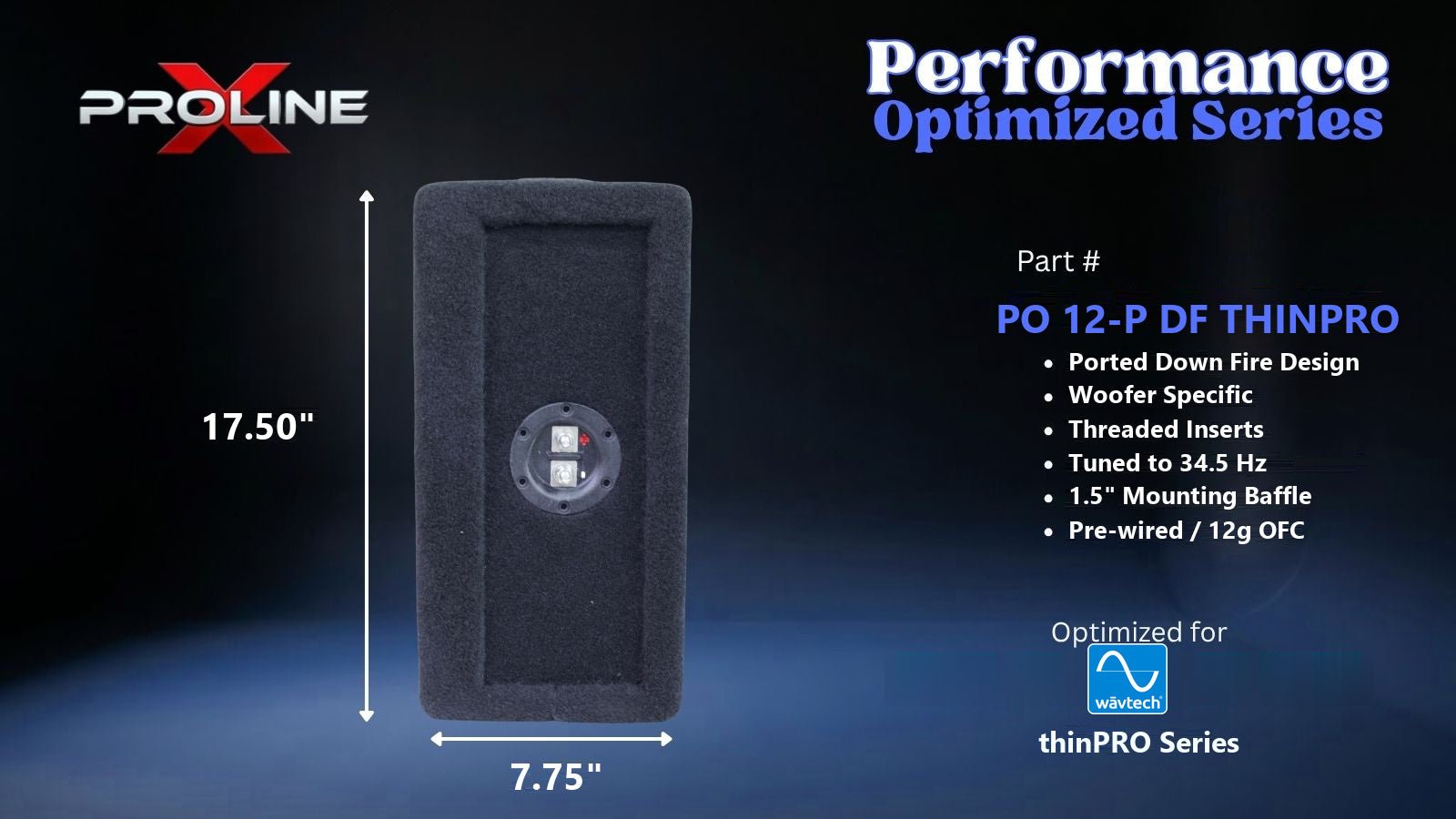

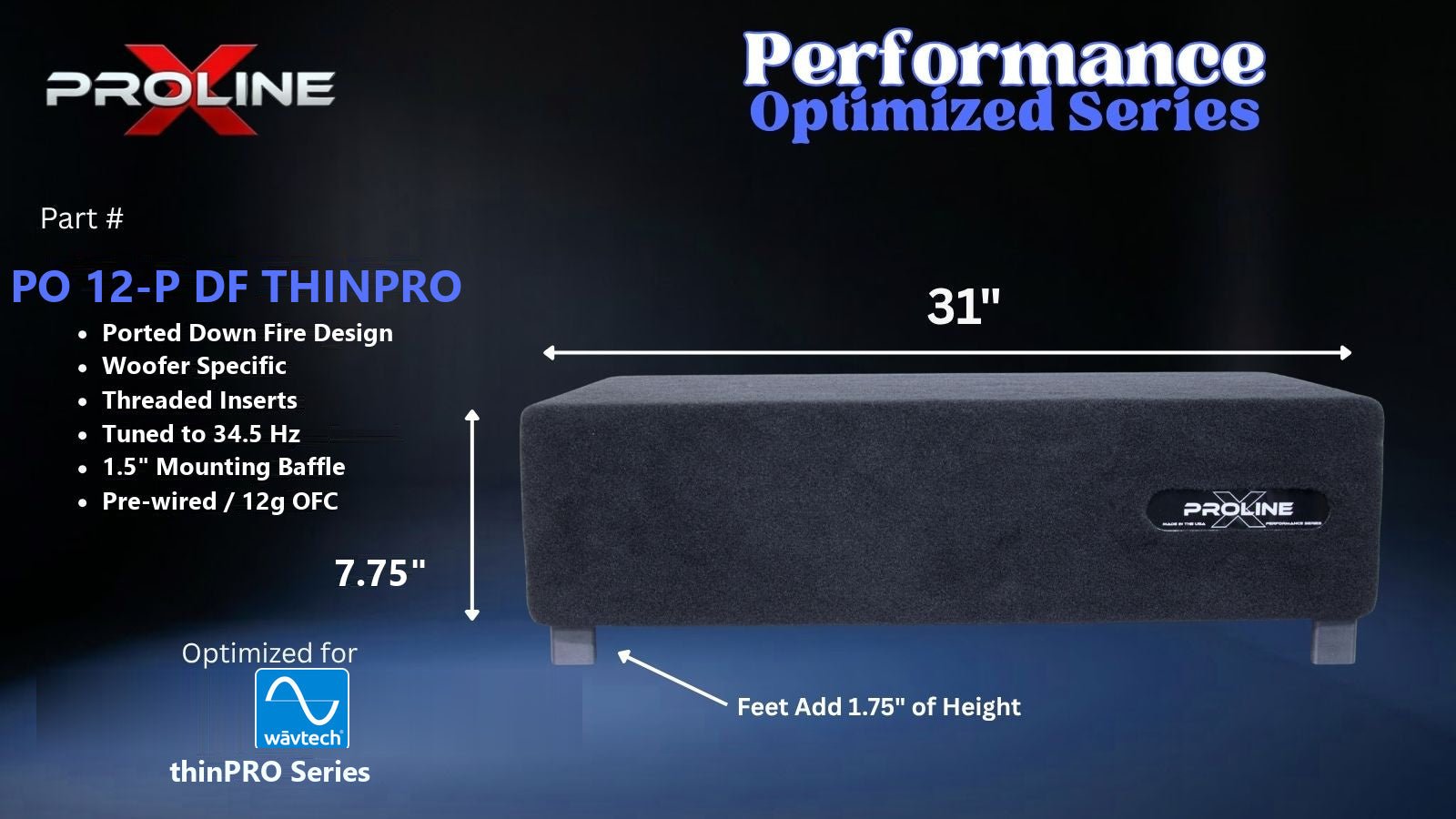

Wavtech thinPRO12 Ported Shallow Down Fire Enclosure, Single 12″

Wavtech thinPRO12 ported shallow down fire enclosure, single 12-inch, with 1.49 cubic feet of net airspace tuned to 34.5 Hz through 23.4 square inches of port; the anechoic F3 is 29.7 Hz.

The port is tuned to 34.5 Hz. Expect a lift of several dB around that point relative to the same driver sealed, and run a subsonic filter 5 to 10 Hz below it; under tuning the port stops loading the cone.

23.4 square inches of port area keeps air velocity down at high output, so the port does not chuff when the music gets loud.

Down-firing puts the cone against the floor: protected from whatever rides in the trunk, with a usable flat top. Shallow build for limited depth behind a seat or in a hatch; the mounting-depth figure below is the one to check.

Construction: 3/4-inch MDF with a double-layer 1.5-inch front baffle, the outer layer recessed so the driver sits flush, V-groove and dado joinery at the panel seams. Polyfill pre-installed and terminal cup fitted.

The published figures are for the dual 2 ohm versions of the driver. If you are between two drivers, send both model numbers and we will tell you which one this volume suits.

Questions on fit or matching? Call or text (775) 541-2950 with your vehicle and the gear you are running.

Specifications

• Enclosure type: Ported
• Drivers: Single, 12-inch
• Net volume: 1.49 cu ft
• Tuning: 34.5 Hz
• Port area: 23.4 sq in
• F3 (anechoic): 29.7 Hz
• Height: 23.4 in
• Front baffle: Double layer, 1.5 in
• Fits: Wavtech thinPRO12
