Stereo Integrity SQL-15 Sealed Wedge Enclosure, Single 15″

Stereo Integrity SQL-15 sealed wedge enclosure, single 15-inch, with 2 cubic feet of net airspace at a system Qtc of 0.82 and an anechoic F3 of 41.8 Hz.

At Qtc 0.82 the response rises slightly before it rolls off. In a trunk or cab that reads as weight on kick drums rather than boom.

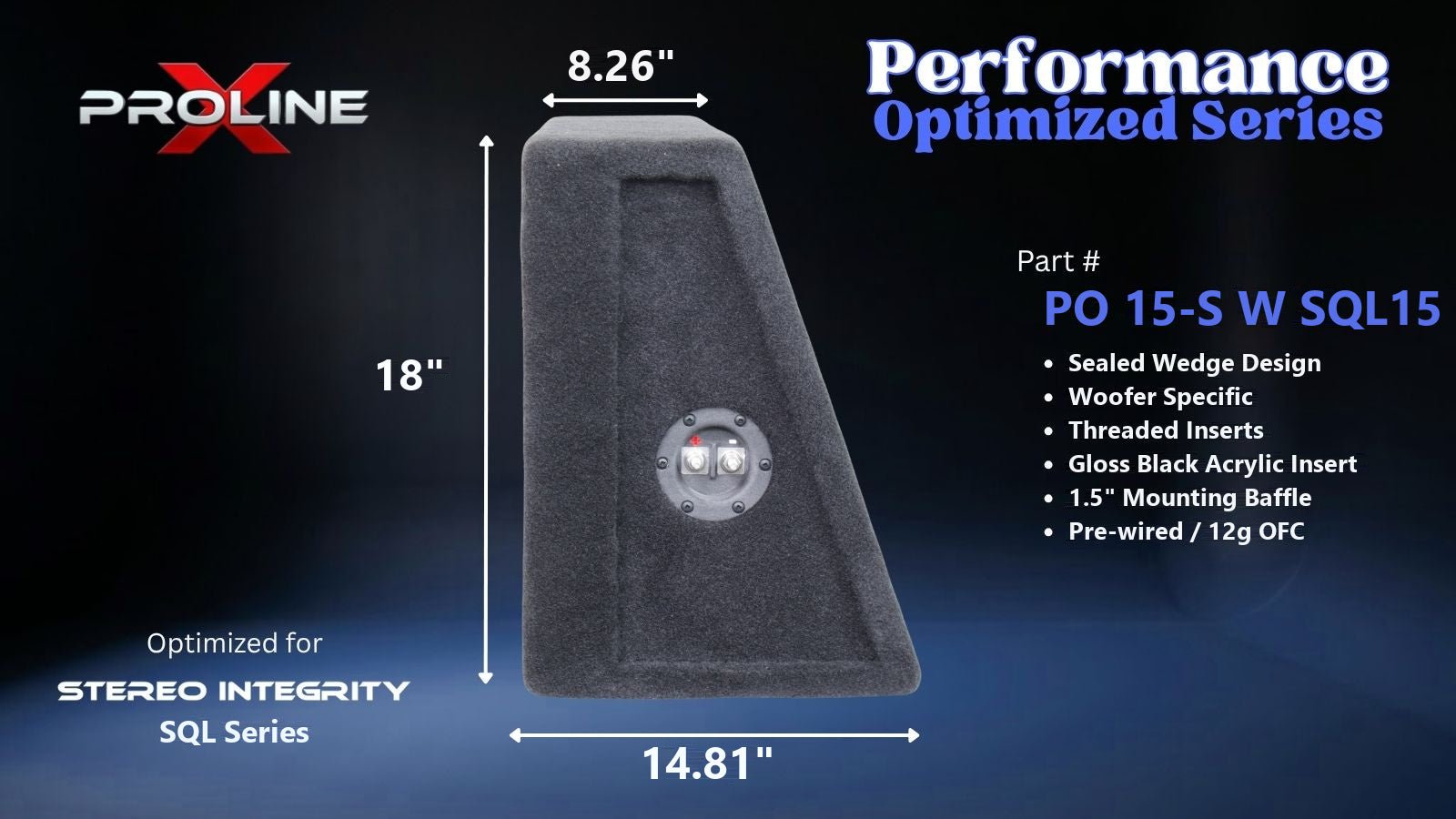

Wedge enclosures follow the seat-back angle and fire rearward into the trunk, which acts as an acoustic extension of the box.

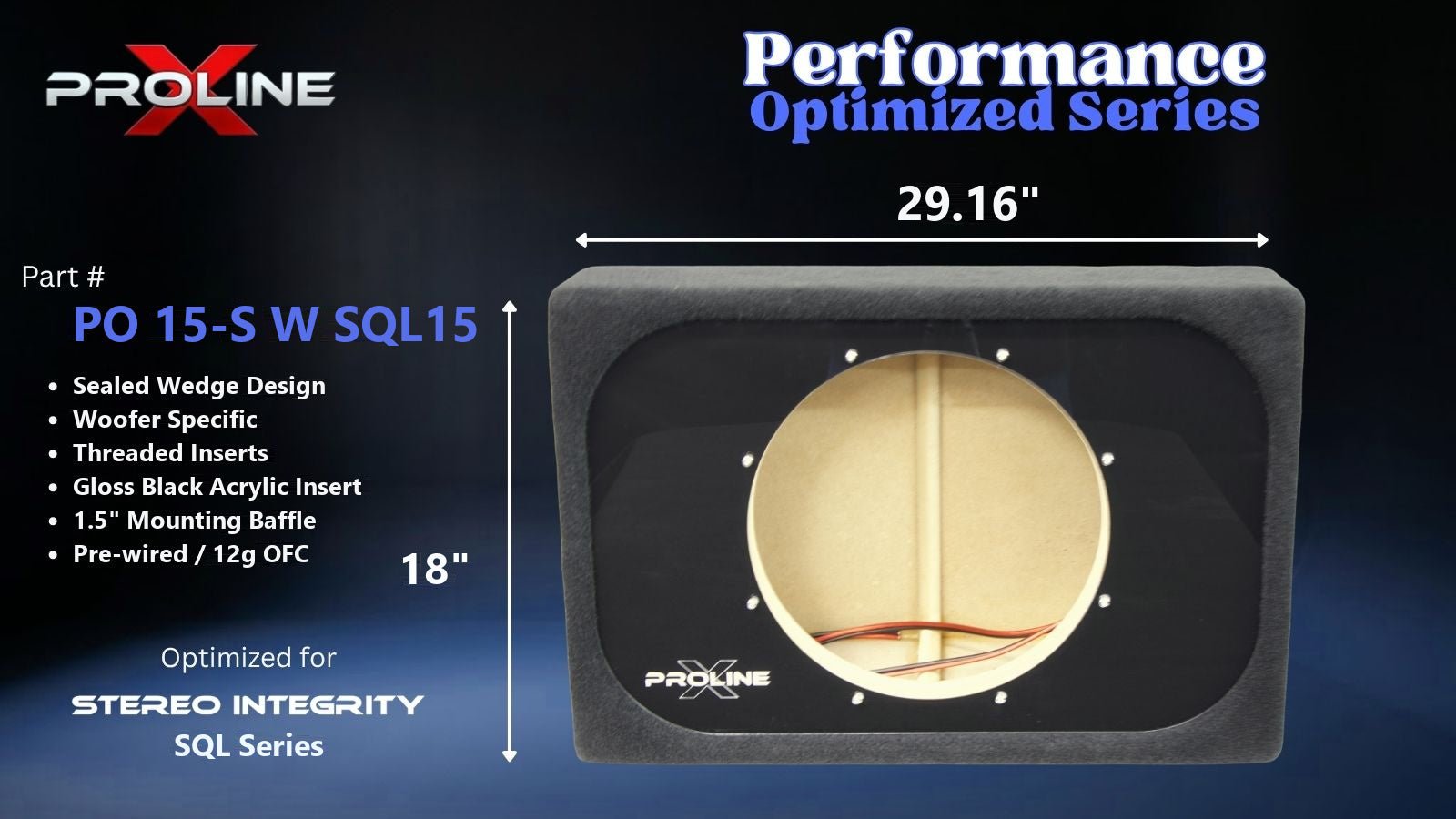

Construction: 3/4-inch MDF with a double-layer 1.5-inch front baffle, the outer layer recessed so the driver sits flush, V-groove and dado joinery at the panel seams. Carpeted in black and pre-wired terminal cup fitted.

The published figures are for the dual 2 ohm and dual 4 ohm versions of the driver. If you are between two drivers, send both model numbers and we will tell you which one this volume suits.

Questions on fit or matching? Call or text (775) 541-2950 with your vehicle and the gear you are running.

Specifications

• Enclosure type: Sealed
• Drivers: Single, 15-inch
• Net volume: 2 cu ft
• System Qtc: 0.82
• F3 (anechoic): 41.8 Hz
• Front baffle: Double layer, 1.5 in
• Fits: Stereo Integrity SQL-15
