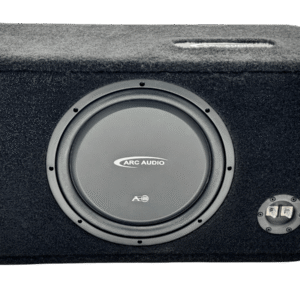

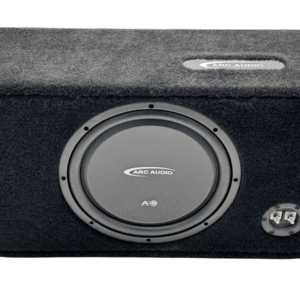

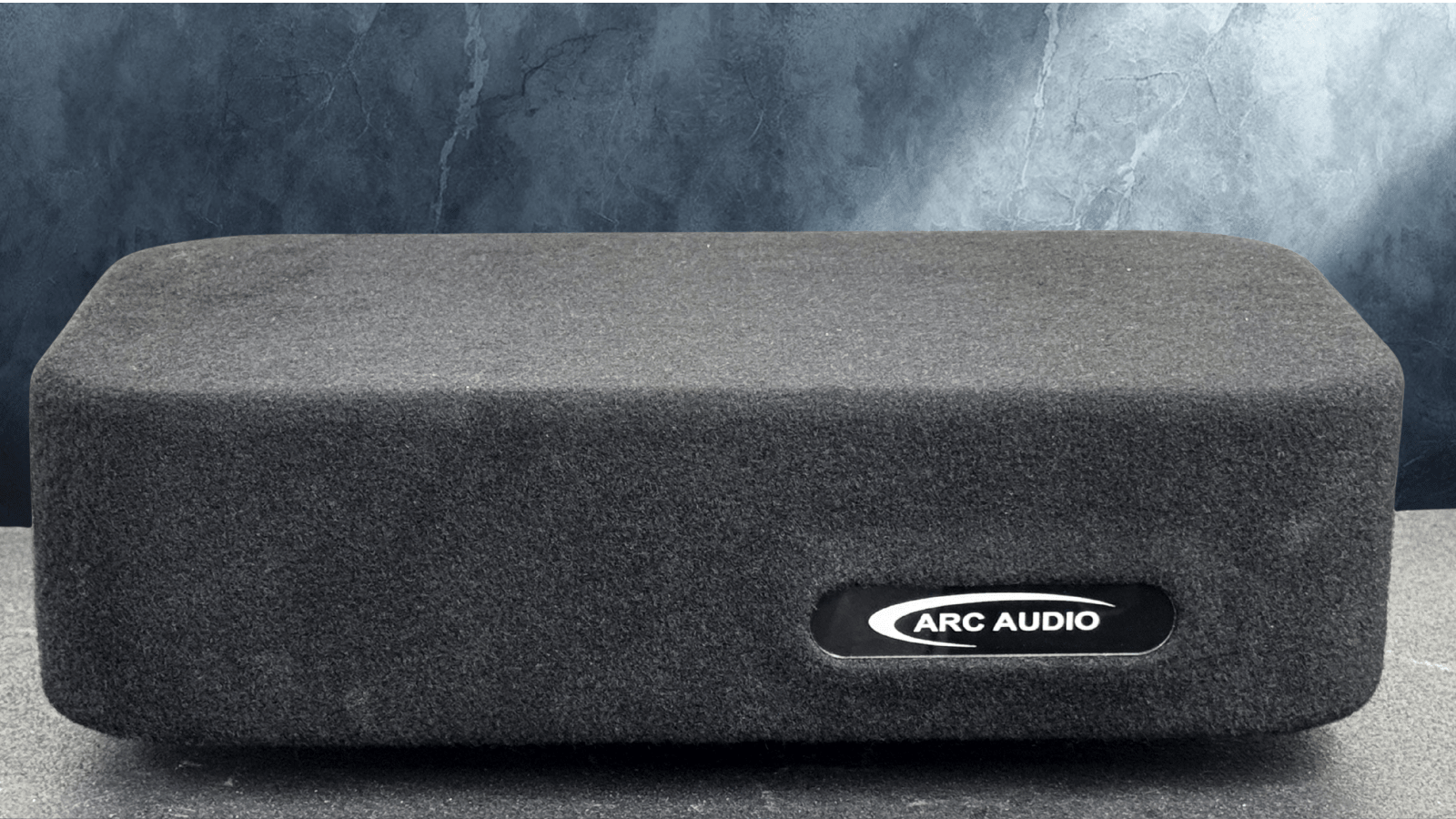

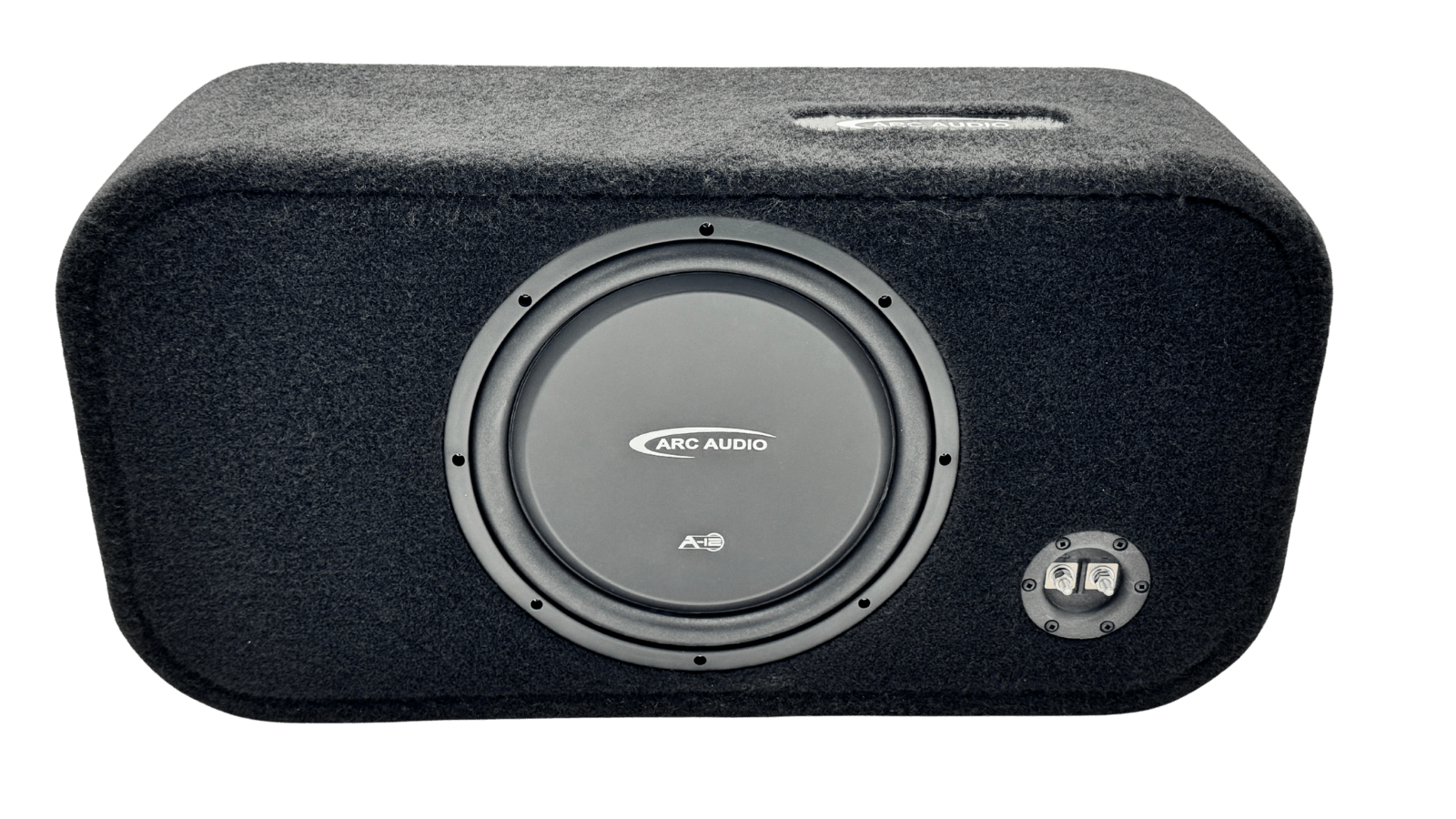

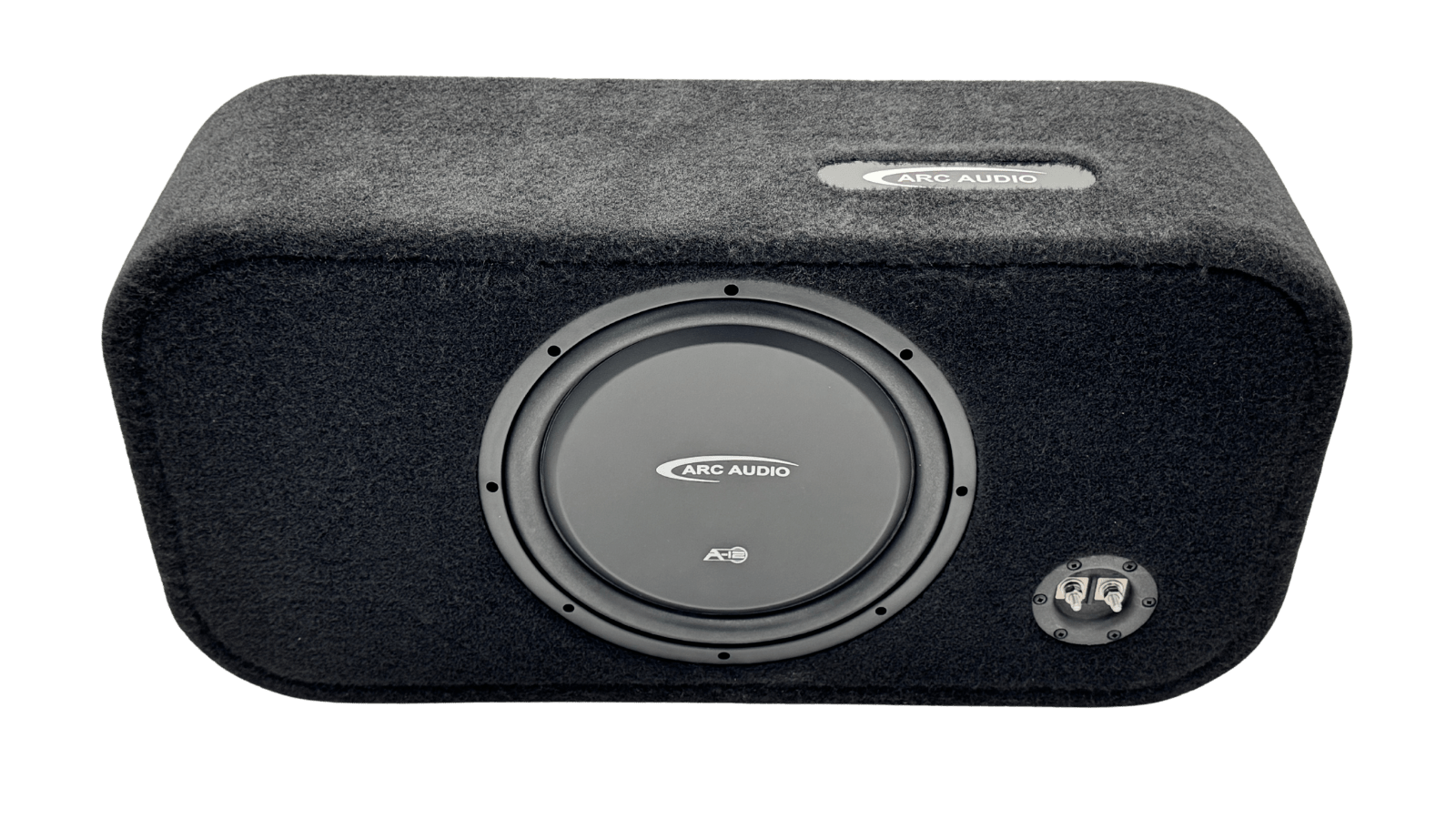

Single Shallow 10″ Sealed Subwoofer Enclosure, Loaded with Arc Audio A10

Single shallow 10-inch sealed subwoofer enclosure loaded with Arc Audio A10, with 0.6 cubic feet of net airspace at a system Qtc of 0.939 and an anechoic F3 of 40 Hz.

A Qtc above 0.9 is a compact, punchy alignment: a clear lift at the corner and a steeper rolloff beneath it. Cabin gain hands back much of the extension the smaller volume gives up.

Shallow build for limited depth behind a seat or in a hatch; the mounting-depth figure below is the one to check.

Construction: 3/4-inch MDF, V-groove and dado joinery at the panel seams. Carpeted in black, polyfill pre-installed and pre-wired terminal cup fitted.

Check your driver's mounting depth against the 3.77-inch figure in the specifications. Available as Dual 4ohm or Dual 2 ohm; tell us which you want in the order notes. Not sure the driver matches? Send us the model number and we will check it against the spec sheet before you order.

Questions on fit or matching? Call or text (775) 541-2950 with your vehicle and the gear you are running.

Specifications

• Enclosure type: Sealed
• Drivers: Single, 10-inch
• Net volume: 0.6 cu ft
• System Qtc: 0.939
• F3 (anechoic): 40 Hz
• Max driver mounting depth: 3.77 in
• Front baffle: 3/4 in MDF
• Loaded with: Arc Audio A10
