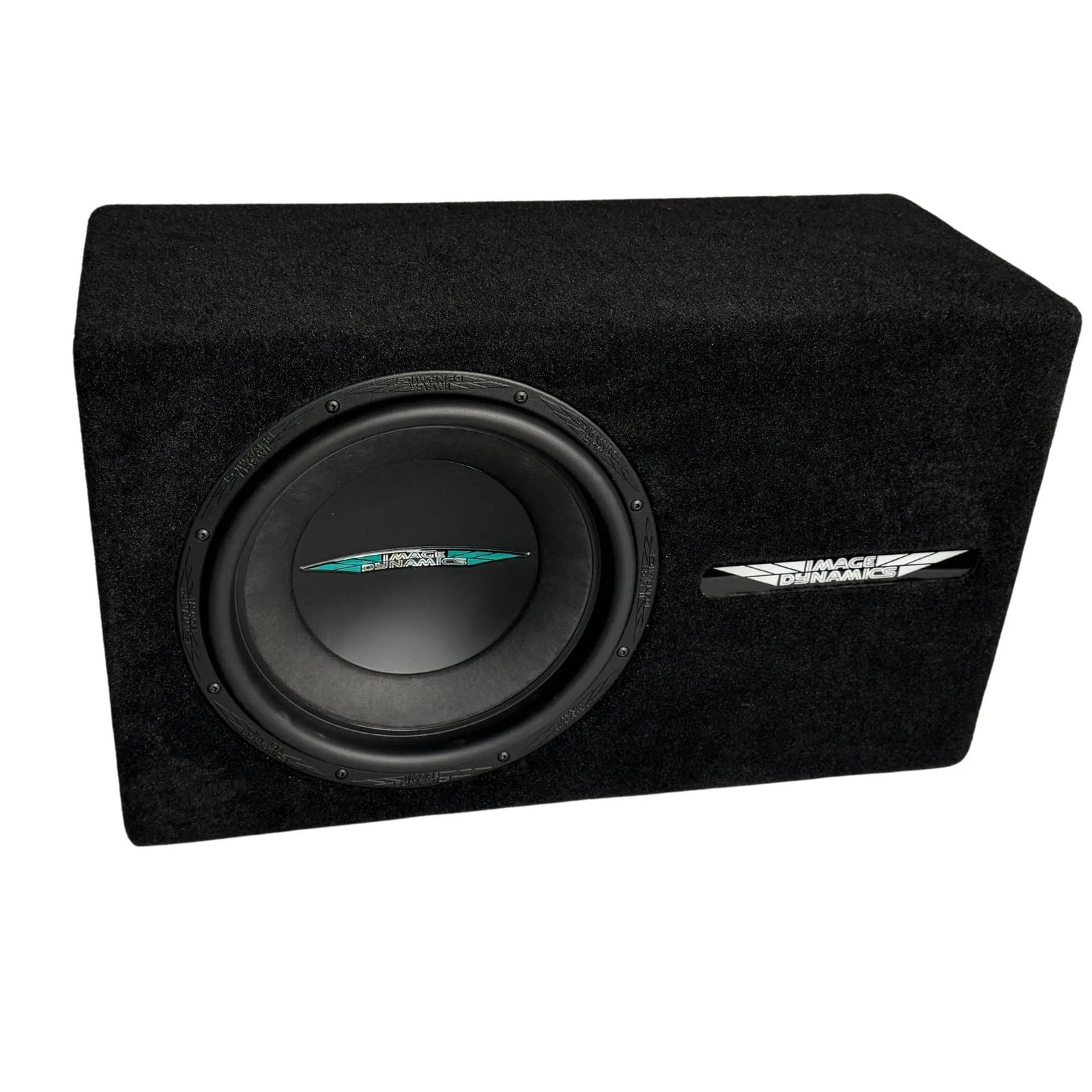

Single 12″ Sealed Subwoofer Enclosure, Loaded with Image Dynamics IDMAX 12

Single 12-inch sealed subwoofer enclosure loaded with Image Dynamics IDMAX 12, with 1.1 cubic feet of net airspace at a system Qtc of 1.139 and an anechoic F3 of 35 Hz.

A Qtc above 0.9 is a compact, punchy alignment: a clear lift at the corner and a steeper rolloff beneath it. Cabin gain hands back much of the extension the smaller volume gives up.

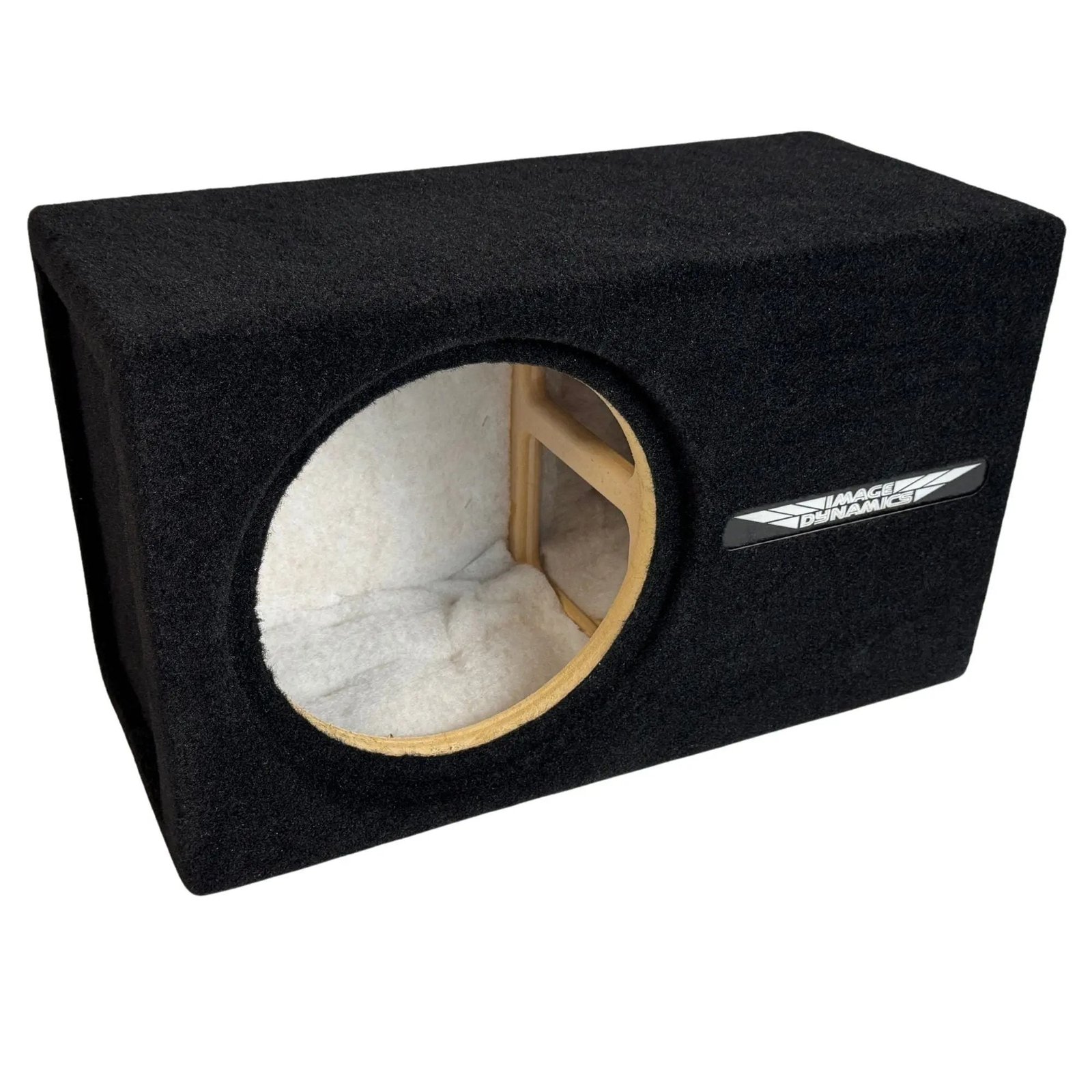

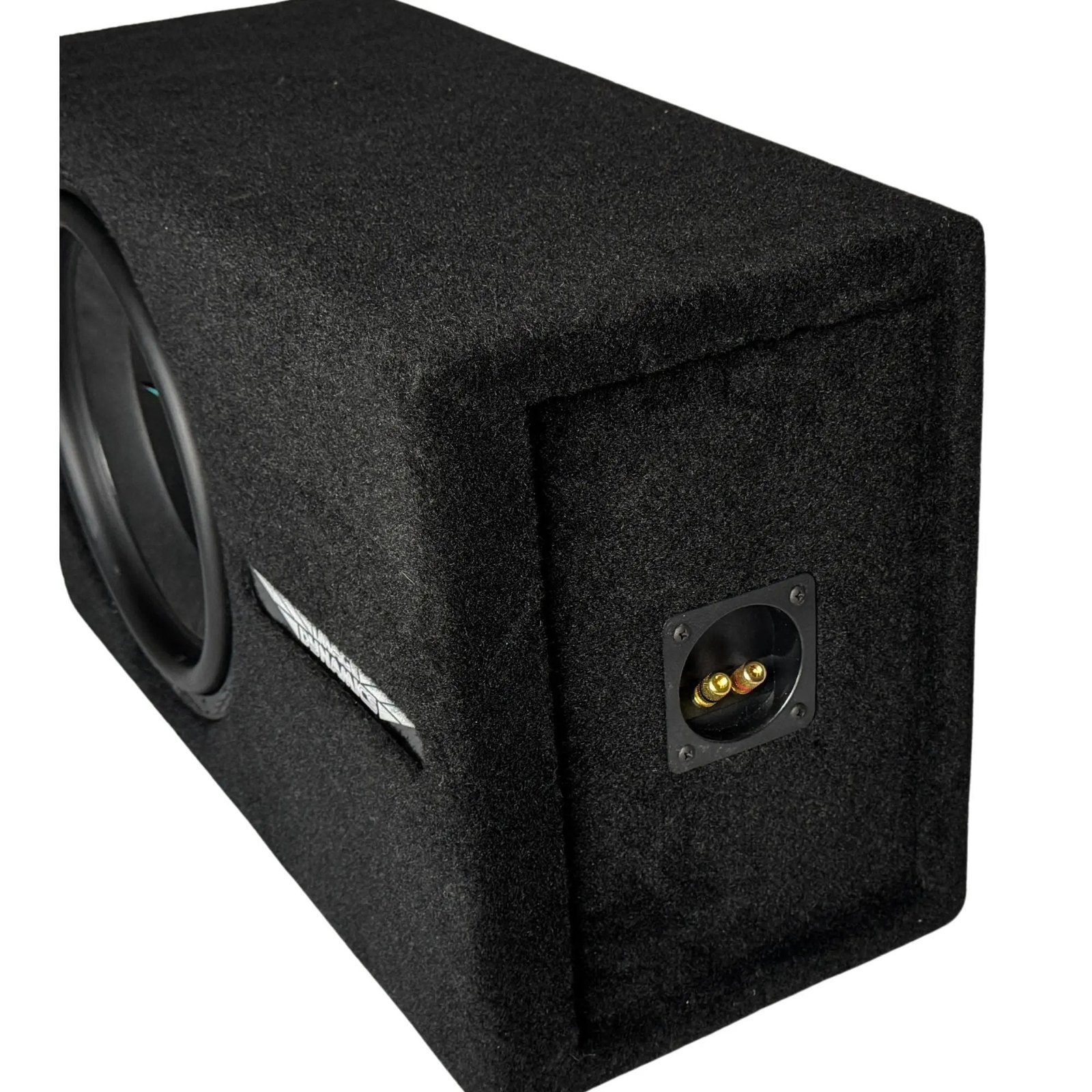

Construction: 3/4-inch MDF with a double-layer 1.5-inch front baffle, the outer layer recessed so the driver sits flush, V-groove and dado joinery at the panel seams. Carpeted in black, polyfill pre-installed and pre-wired terminal cup fitted.

Check your driver's mounting depth against the 8.15-inch figure in the specifications. Available as Dual 2 Ohm or Dual 4 Ohm; tell us which you want in the order notes. Not sure the driver matches? Send us the model number and we will check it against the spec sheet before you order.

Questions on fit or matching? Call or text (775) 541-2950 with your vehicle and the gear you are running.

Specifications

• Enclosure type: Sealed
• Drivers: Single, 12-inch
• Net volume: 1.1 cu ft
• System Qtc: 1.139
• F3 (anechoic): 35 Hz
• Max driver mounting depth: 8.15 in
• Front baffle: Double layer, 1.5 in
• Loaded with: Image Dynamics IDMAX 12
