ResoNix GUS-12 Sealed Shallow Wedge Enclosure, Dual 12″

ResoNix GUS-12 dual sealed shallow wedge enclosure, 12-inch, with 0.75 cubic feet of net airspace at a system Qtc of 0.719.

A Qtc near 0.707 is the Butterworth alignment: the flattest response a sealed box can give, with no bump at the corner and a gentle 12 dB per octave rolloff below it that cabin gain fills back in.

The wedge profile leans into the seat back with the baffle toward the trunk lid, so the cargo floor in front of it stays usable. Shallow build for limited depth behind a seat or in a hatch; the mounting-depth figure below is the one to check.

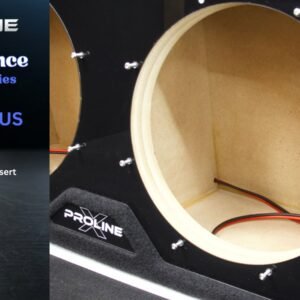

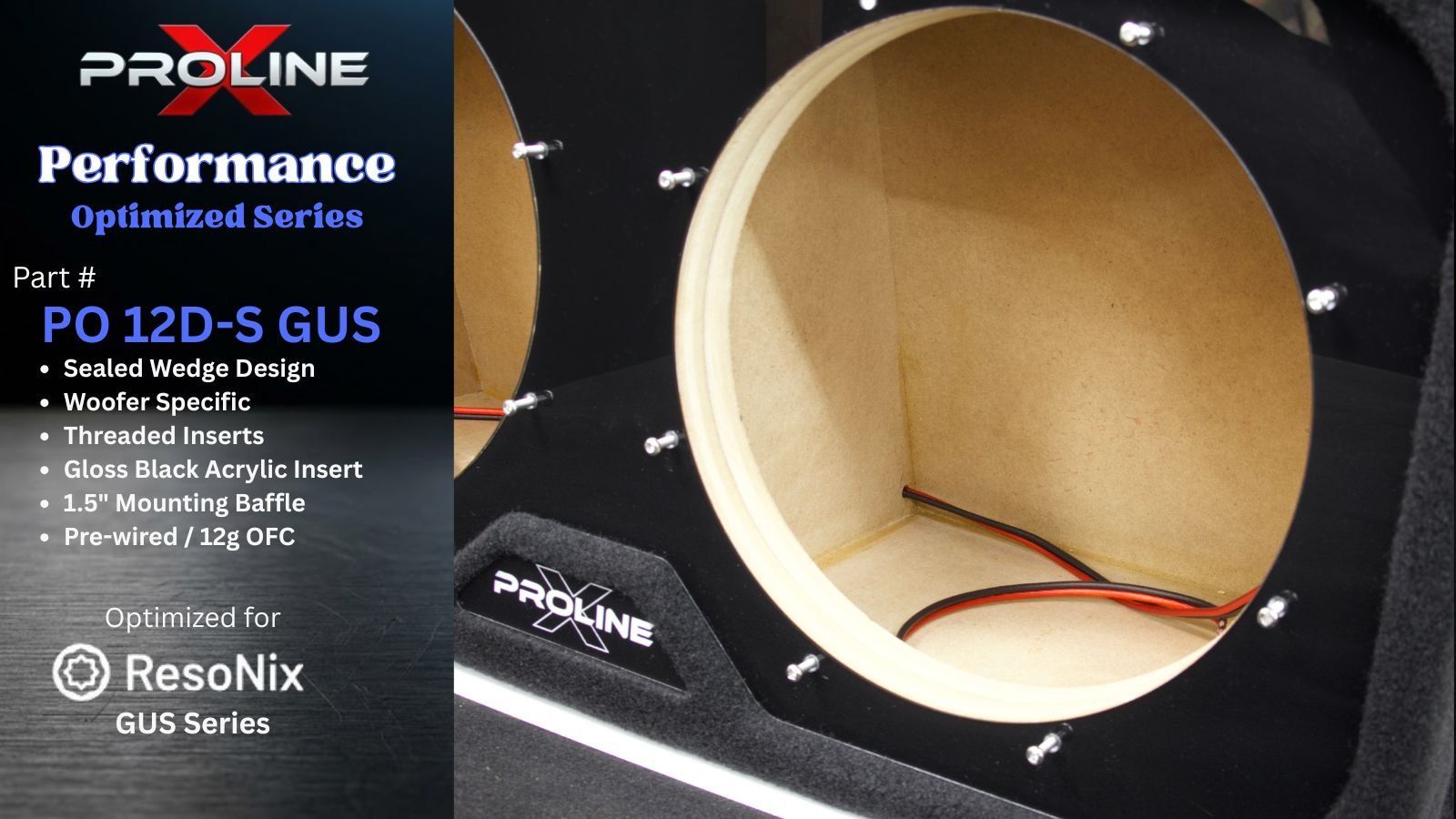

Construction: 3/4-inch MDF with a double-layer 1.5-inch front baffle, the outer layer recessed so the driver sits flush, V-groove and dado joinery at the panel seams. Carpeted in black, polyfill pre-installed and terminal cup fitted.

Check your driver's mounting depth against the 8-inch figure in the specifications. The drivers share one chamber, so run matching drivers wired to the same impedance. Not sure the driver matches? Send us the model number and we will check it against the spec sheet before you order.

Questions on fit or matching? Call or text (775) 541-2950 with your vehicle and the gear you are running.

Specifications

• Enclosure type: Sealed
• Drivers: Dual, 12-inch
• Net volume: 0.75 cu ft
• System Qtc: 0.719
• Max driver mounting depth: 8 in

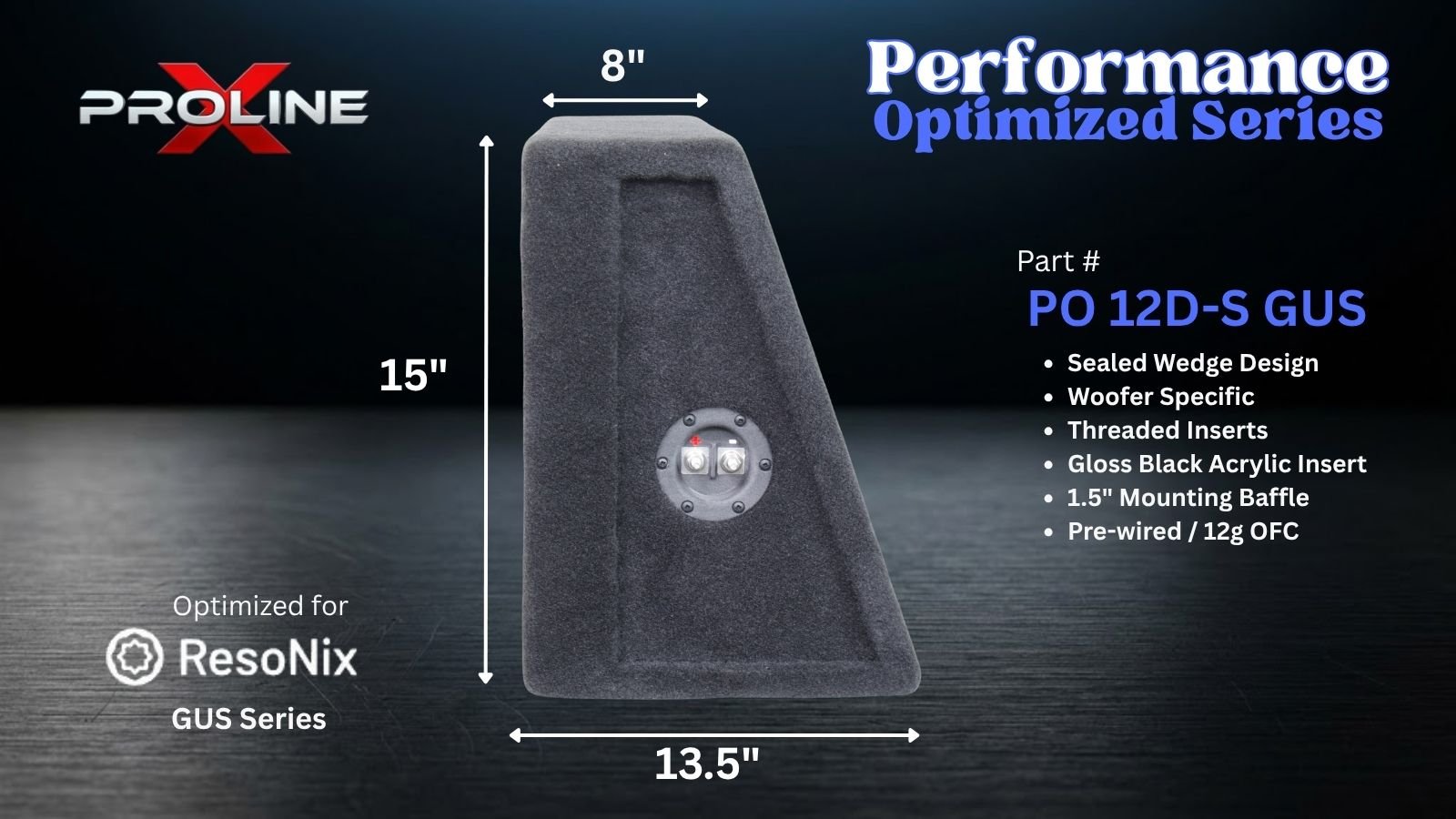

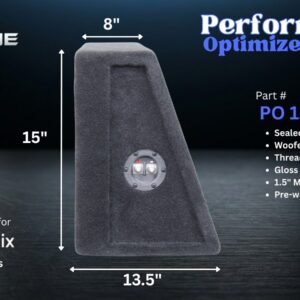

• Height: 15 in

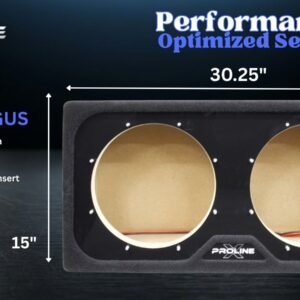

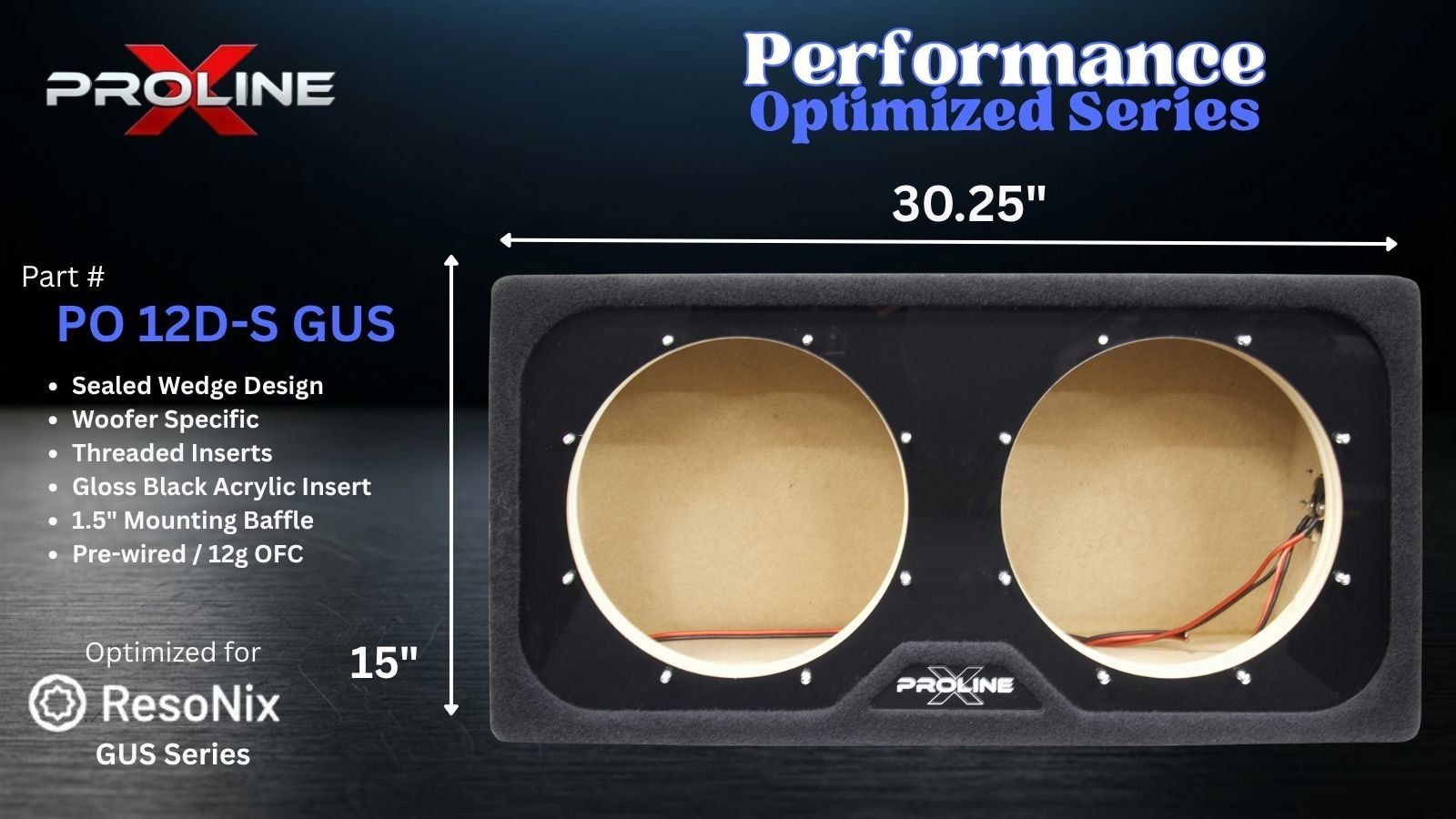

• Width: 30.25 in
• Front baffle: Double layer, 1.5 in
• Chambers: Shared
• Fits: ResoNix GUS-12
