Prodigy NB2-10 Sealed Wedge Wide Enclosure, Quad 10″

Prodigy NB2-10 quad sealed wedge wide enclosure, 10-inch, with 0.833 cubic feet of net airspace and an anechoic F3 of 47.2 Hz.

Sealed is the forgiving alignment: a smaller box, a gentle rolloff, and tolerance for a volume that lands slightly off the target. It gives up some output per watt to a ported box in exchange for control.

The wedge profile leans into the seat back with the baffle toward the trunk lid, so the cargo floor in front of it stays usable. The wide format spreads the volume across the trunk rather than back into it, keeping depth short.

Construction: 3/4-inch MDF with a double-layer 1.5-inch front baffle, the outer layer recessed so the driver sits flush, V-groove and dado joinery at the panel seams. Carpeted in black, polyfill pre-installed and pre-wired terminal cup fitted.

Each driver has its own sealed chamber. The published figures are for the dual 2 ohm and dual 4 ohm and single 4 ohm versions of the driver. Not sure the driver matches? Send us the model number and we will check it against the spec sheet before you order.

Questions on fit or matching? Call or text (775) 541-2950 with your vehicle and the gear you are running.

Specifications

• Enclosure type: Sealed
• Drivers: Quad, 10-inch
• Net volume: 0.833 cu ft
• F3 (anechoic): 47.2 Hz

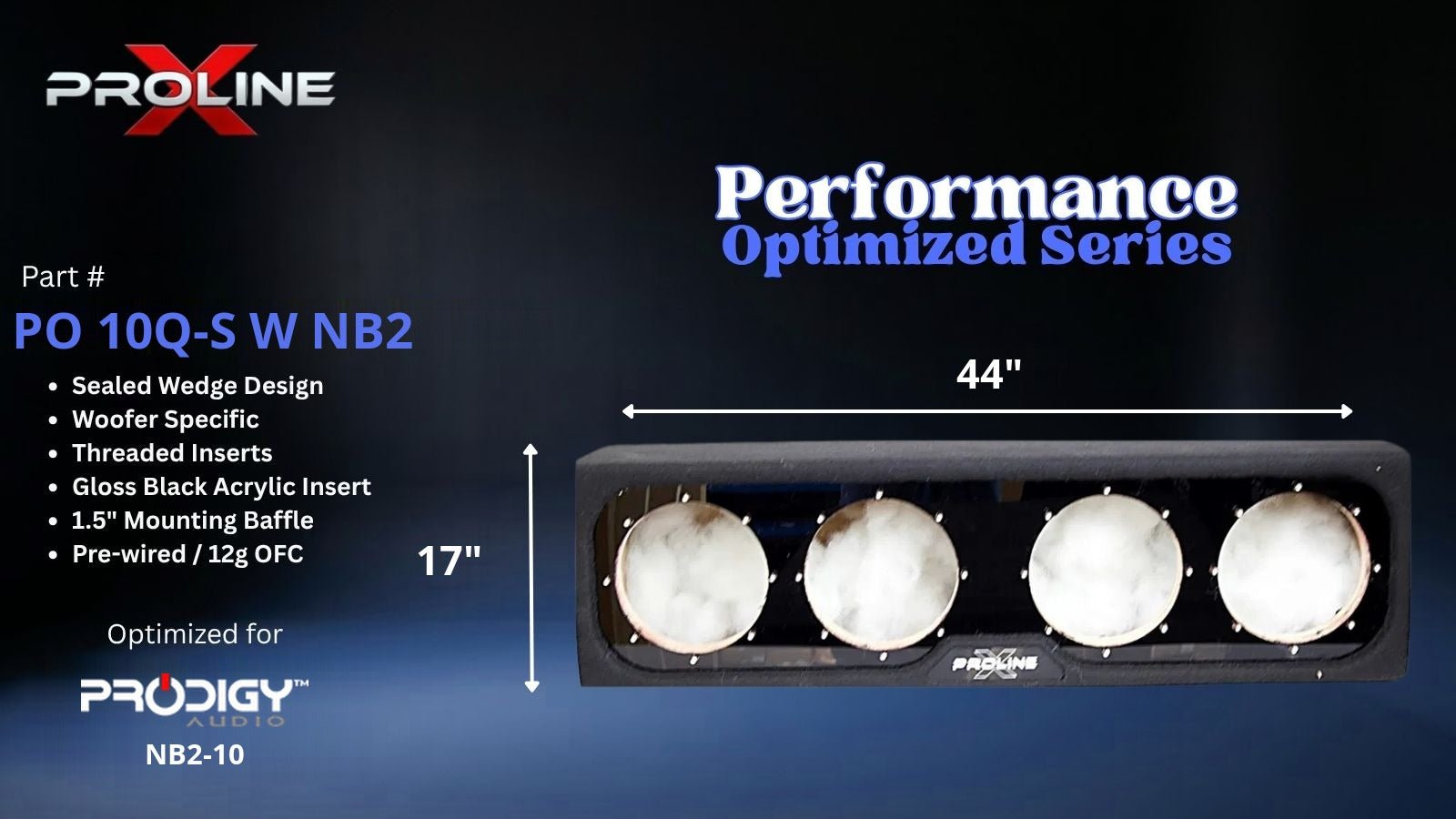

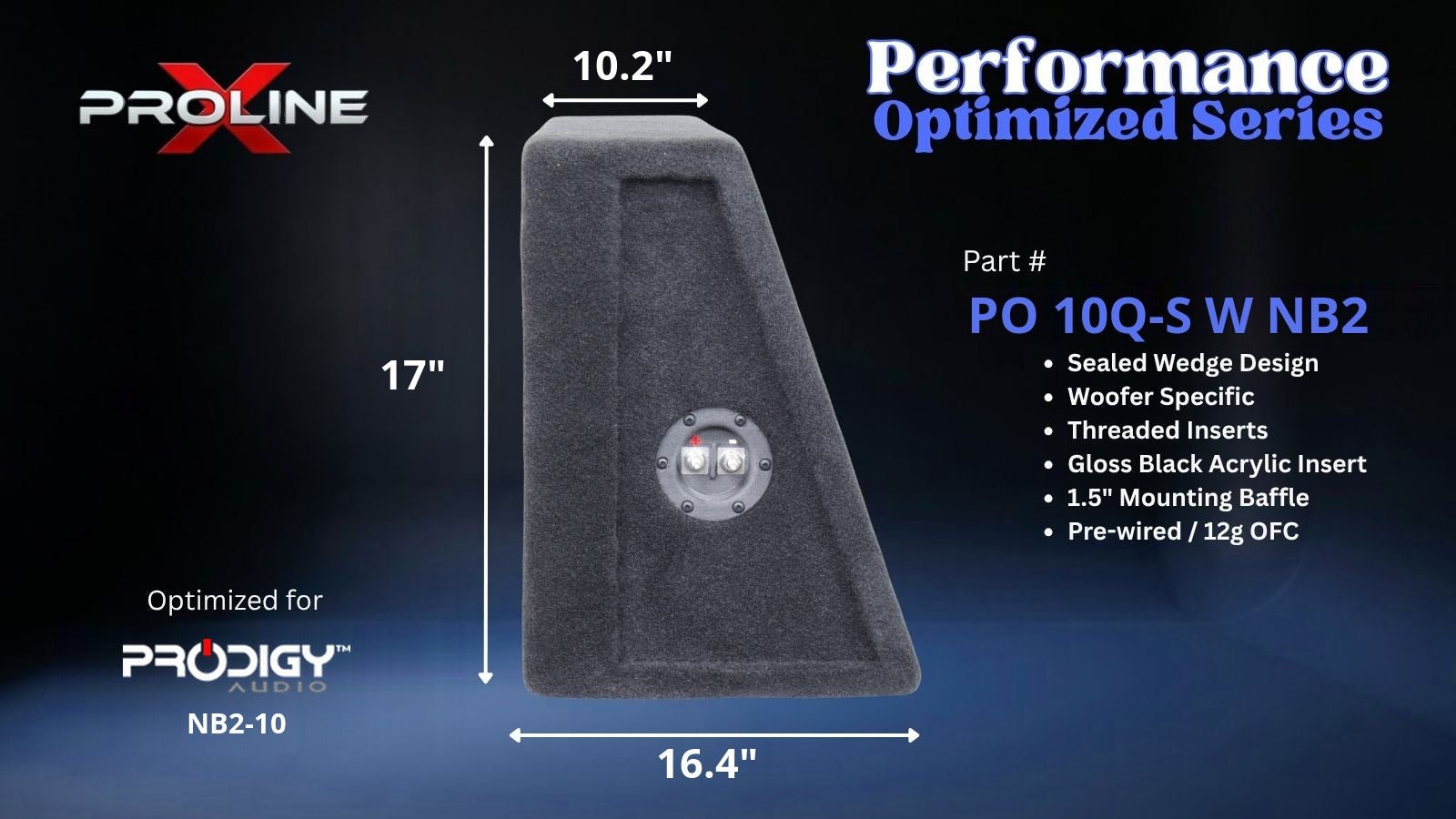

• Height: 17 in
• Width: 44 in
• Depth: 16.42 in
• Front baffle: Double layer, 1.5 in
• Chambers: One per driver
• Fits: Prodigy NB2-10
