JL Audio 12W1v3 Sealed Wedge Enclosure, Dual 12″

JL Audio 12W1v3 dual sealed wedge enclosure, 12-inch, with 1.1 cubic feet of net airspace at a system Qtc of 0.93 and an anechoic F3 of 39 Hz.

At Qtc 0.93 the box is small for the driver and the response peaks before it falls away. It is the right call where space is the constraint and output per cubic foot matters.

Wedge enclosures follow the seat-back angle and fire rearward into the trunk, which acts as an acoustic extension of the box.

Construction: 3/4-inch MDF with a double-layer 1.5-inch front baffle, the outer layer recessed so the driver sits flush, V-groove and dado joinery at the panel seams. Carpeted in black, polyfill pre-installed and pre-wired terminal cup fitted.

Check your driver's mounting depth against the 5.41-inch figure in the specifications. Each driver has its own sealed chamber. If you are between two drivers, send both model numbers and we will tell you which one this volume suits.

Questions on fit or matching? Call or text (775) 541-2950 with your vehicle and the gear you are running.

Specifications

• Enclosure type: Sealed
• Drivers: Dual, 12-inch
• Net volume: 1.1 cu ft
• System Qtc: 0.93
• F3 (anechoic): 39 Hz
• Max driver mounting depth: 5.41 in

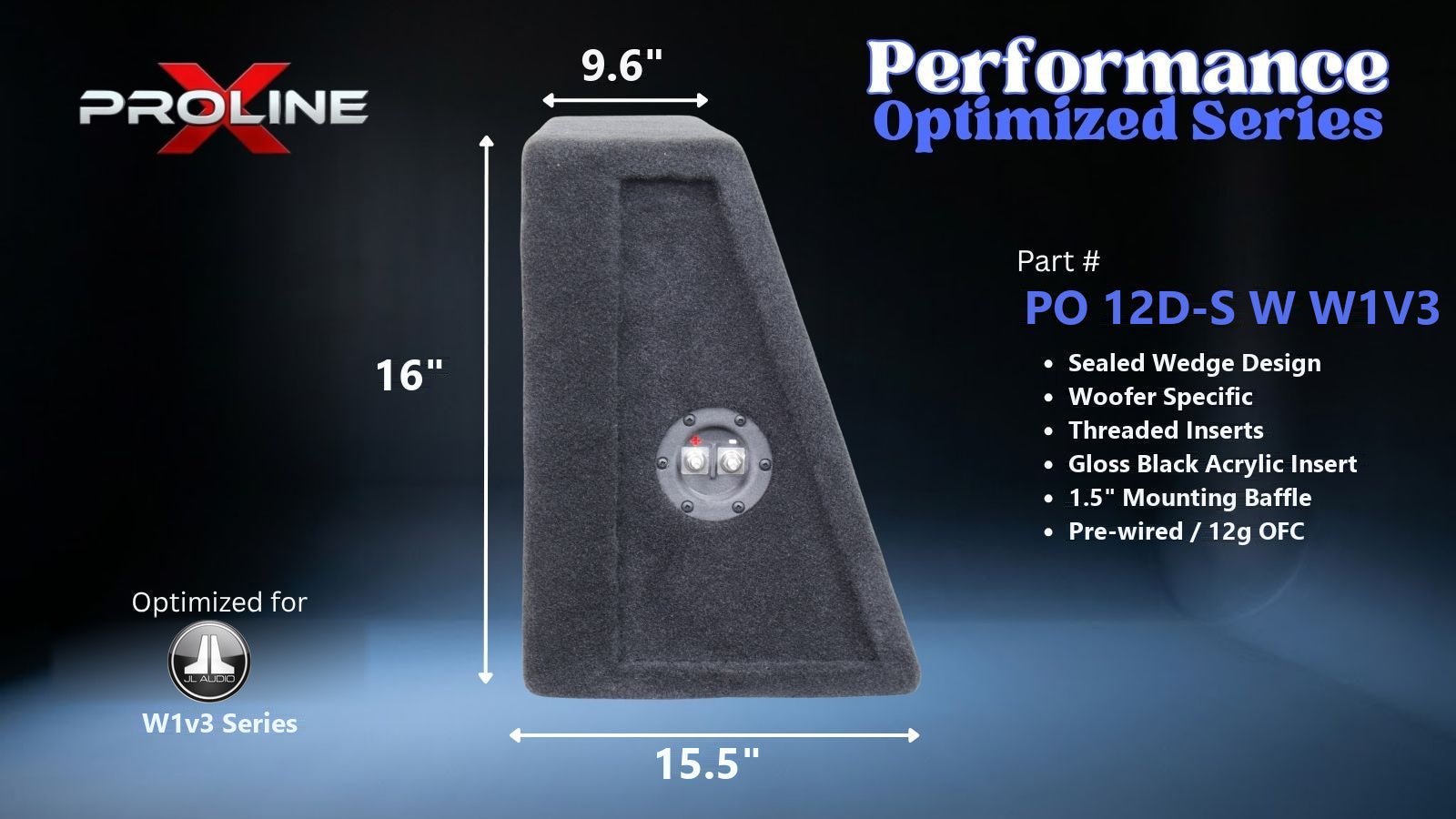

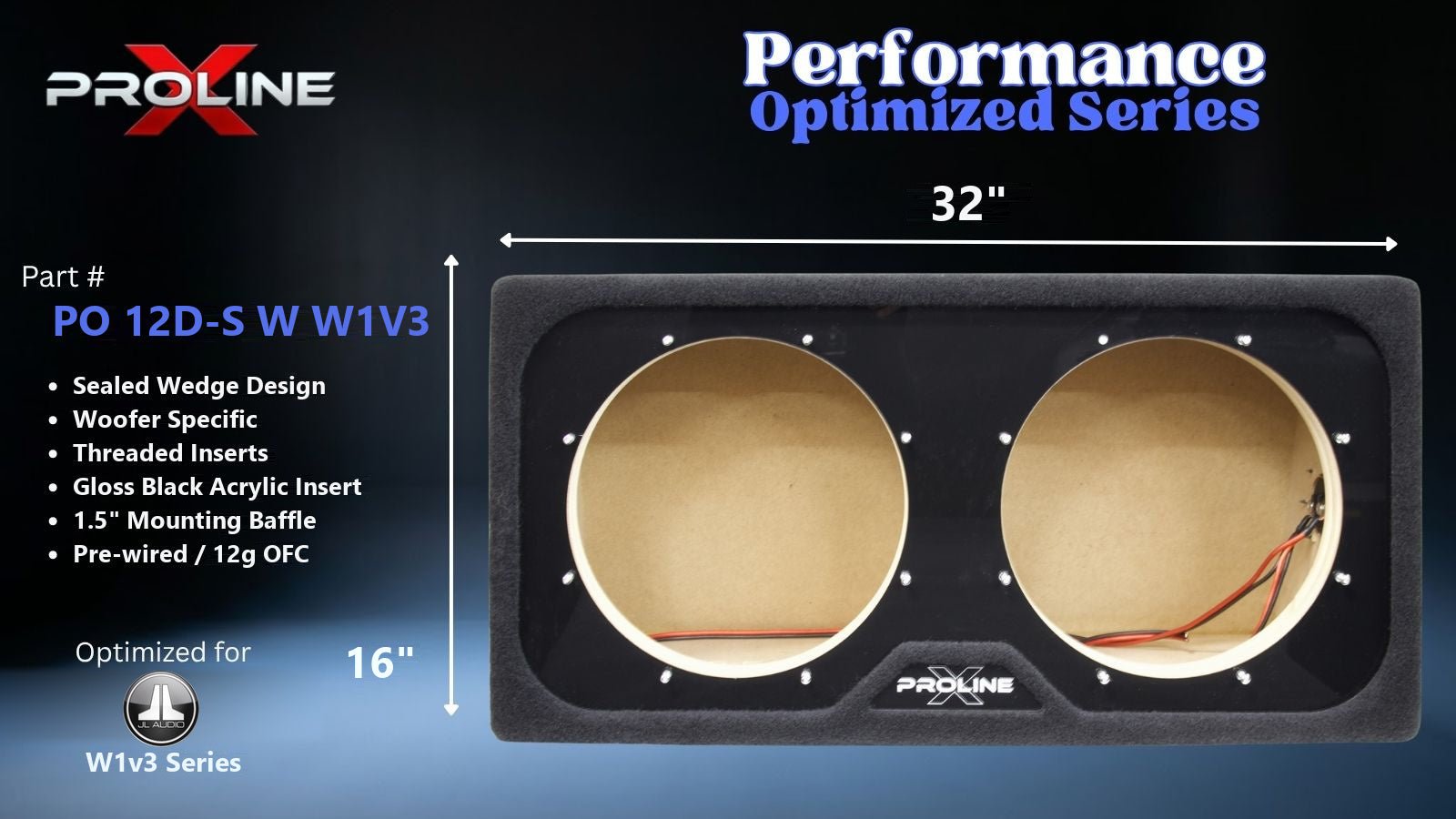

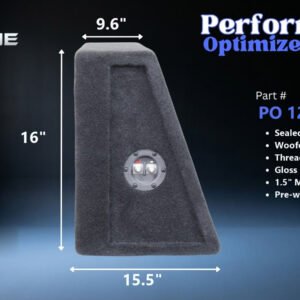

• Height: 16 in
• Width: 16 in
• Depth: 9.64 in
• Front baffle: Double layer, 1.5 in
• Chambers: One per driver
• Fits: JL Audio 12W1v3
