JL Audio 12TW3 Sealed Shallow Down Fire Wide Enclosure, Dual 12″

JL Audio 12TW3 dual sealed shallow down fire wide enclosure, 12-inch, with 0.867 cubic feet of net airspace at a system Qtc of 0.917 and an anechoic F3 of 37.5 Hz.

A Qtc above 0.9 is a compact, punchy alignment: a clear lift at the corner and a steeper rolloff beneath it. Cabin gain hands back much of the extension the smaller volume gives up.

Firing into the floor, the sealed rolloff meets rising cabin gain below about 60 Hz, so in-car extension runs below the anechoic figure above.

The baffle faces the floor, which keeps cargo off the cone and leaves a flat top you can load on. The wide format spreads the volume across the trunk rather than back into it, keeping depth short. Shallow build for limited depth behind a seat or in a hatch; the mounting-depth figure below is the one to check.

Construction: 3/4-inch MDF with a double-layer 1.5-inch front baffle, the outer layer recessed so the driver sits flush, V-groove and dado joinery at the panel seams. Carpeted in black, polyfill pre-installed and pre-wired terminal cup fitted.

Check your driver's mounting depth against the 3.5-inch figure in the specifications. Each driver has its own sealed chamber. Not sure the driver matches? Send us the model number and we will check it against the spec sheet before you order.

Questions on fit or matching? Call or text (775) 541-2950 with your vehicle and the gear you are running.

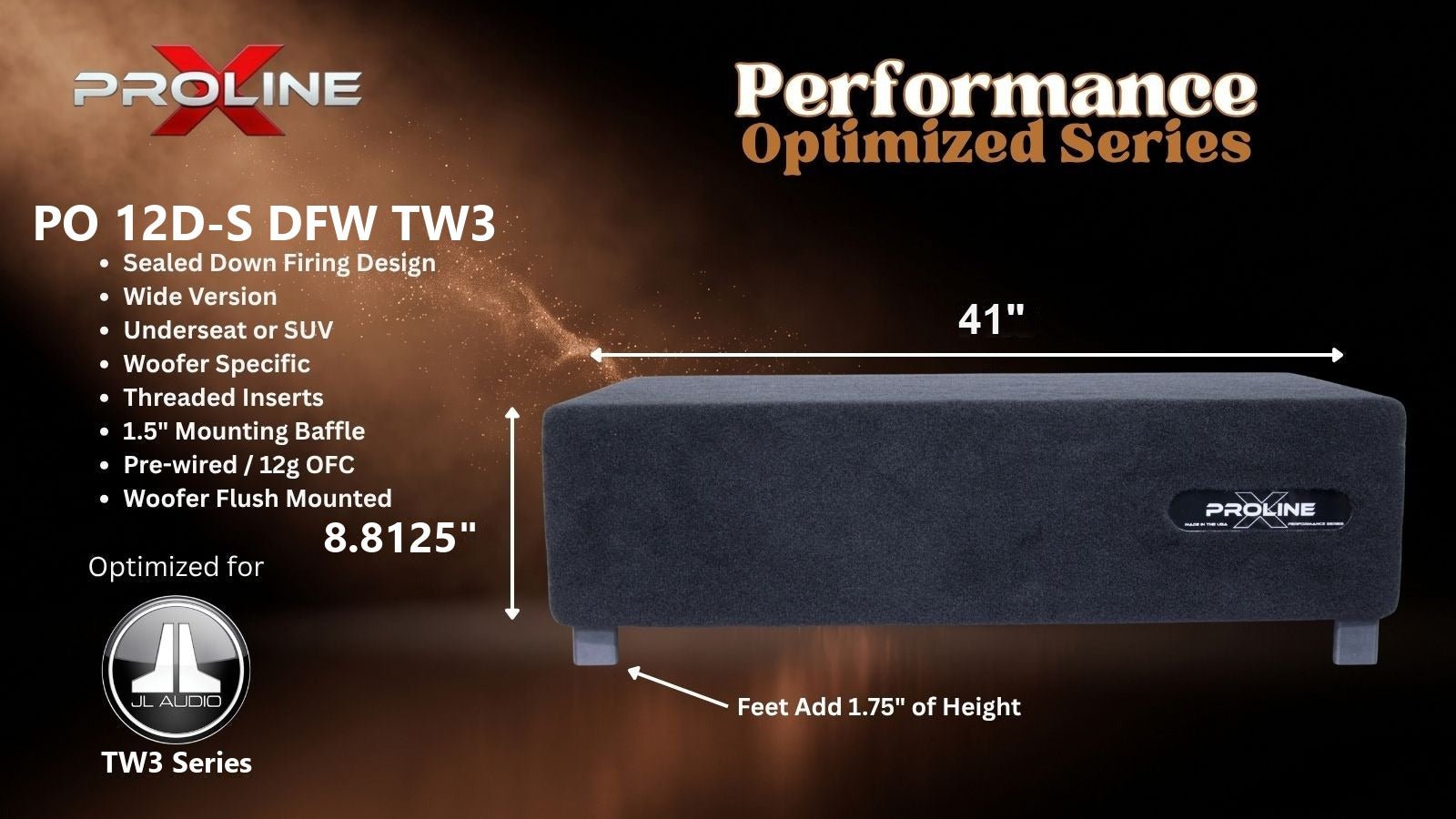

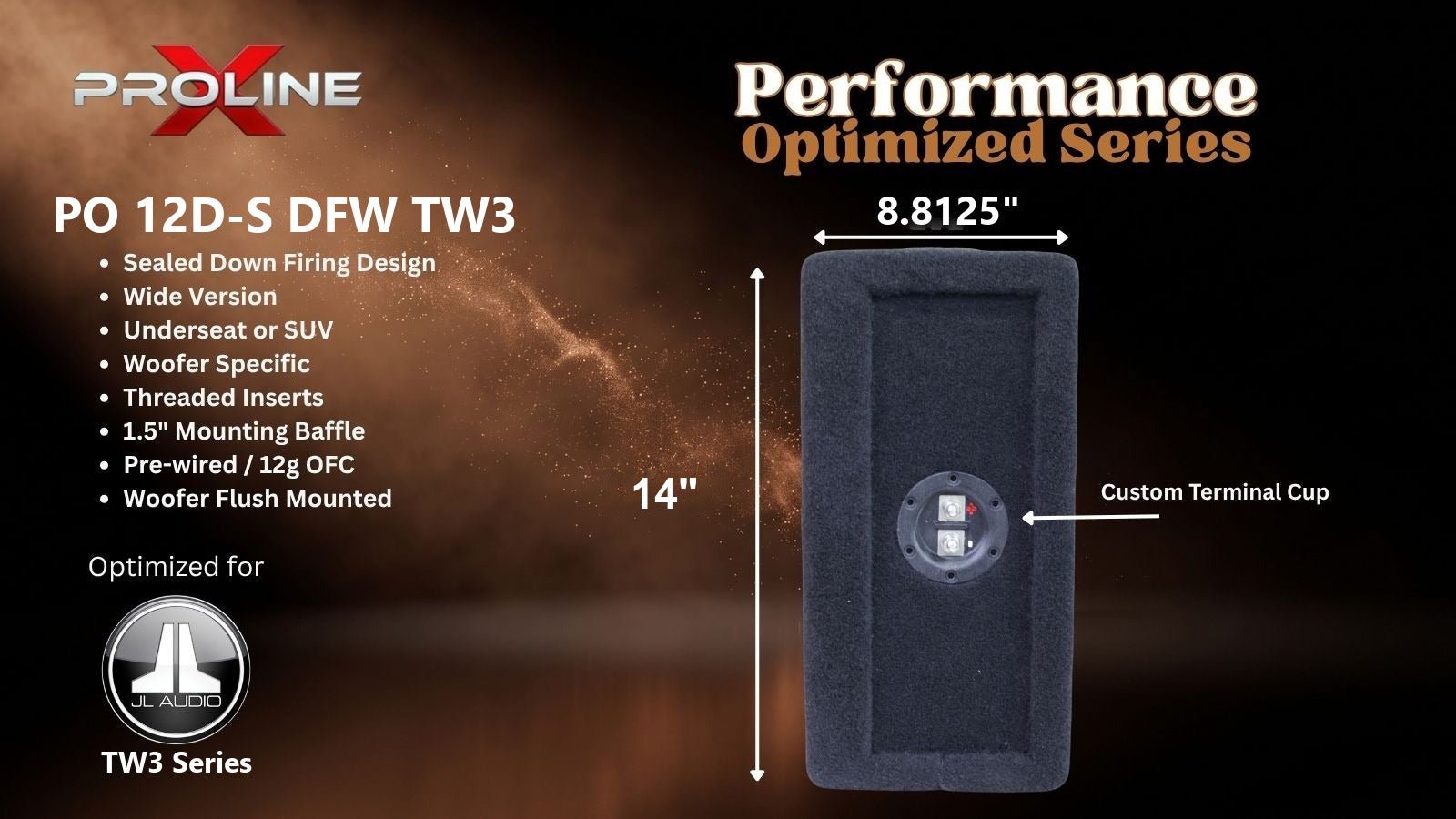

Specifications

• Enclosure type: Sealed
• Drivers: Dual, 12-inch
• Net volume: 0.867 cu ft
• System Qtc: 0.917
• F3 (anechoic): 37.5 Hz
• Max driver mounting depth: 3.5 in
• Height: 8.8125 in
• Width: 41 in
• Depth: 14 in
• Front baffle: Double layer, 1.5 in
• Chambers: One per driver
• Fits: JL Audio 12TW3
