JL Audio 10W1v3 Sealed Wedge Enclosure, Dual 10″

JL Audio 10W1v3 dual sealed wedge enclosure, 10-inch, with 0.55 cubic feet of net airspace at a system Qtc of 0.85 and an anechoic F3 of 42.3 Hz.

At Qtc 0.85 the response rises slightly before it rolls off. In a trunk or cab that reads as weight on kick drums rather than boom.

Wedge enclosures follow the seat-back angle and fire rearward into the trunk, which acts as an acoustic extension of the box.

Construction: 3/4-inch MDF with a double-layer 1.5-inch front baffle, the outer layer recessed so the driver sits flush, V-groove and dado joinery at the panel seams. Carpeted in black, polyfill pre-installed and pre-wired terminal cup fitted.

Check your driver's mounting depth against the 4.6-inch figure in the specifications. Each driver has its own sealed chamber. If you are between two drivers, send both model numbers and we will tell you which one this volume suits.

Questions on fit or matching? Call or text (775) 541-2950 with your vehicle and the gear you are running.

Specifications

• Enclosure type: Sealed
• Drivers: Dual, 10-inch
• Net volume: 0.55 cu ft
• System Qtc: 0.85
• F3 (anechoic): 42.3 Hz
• Max driver mounting depth: 4.6 in

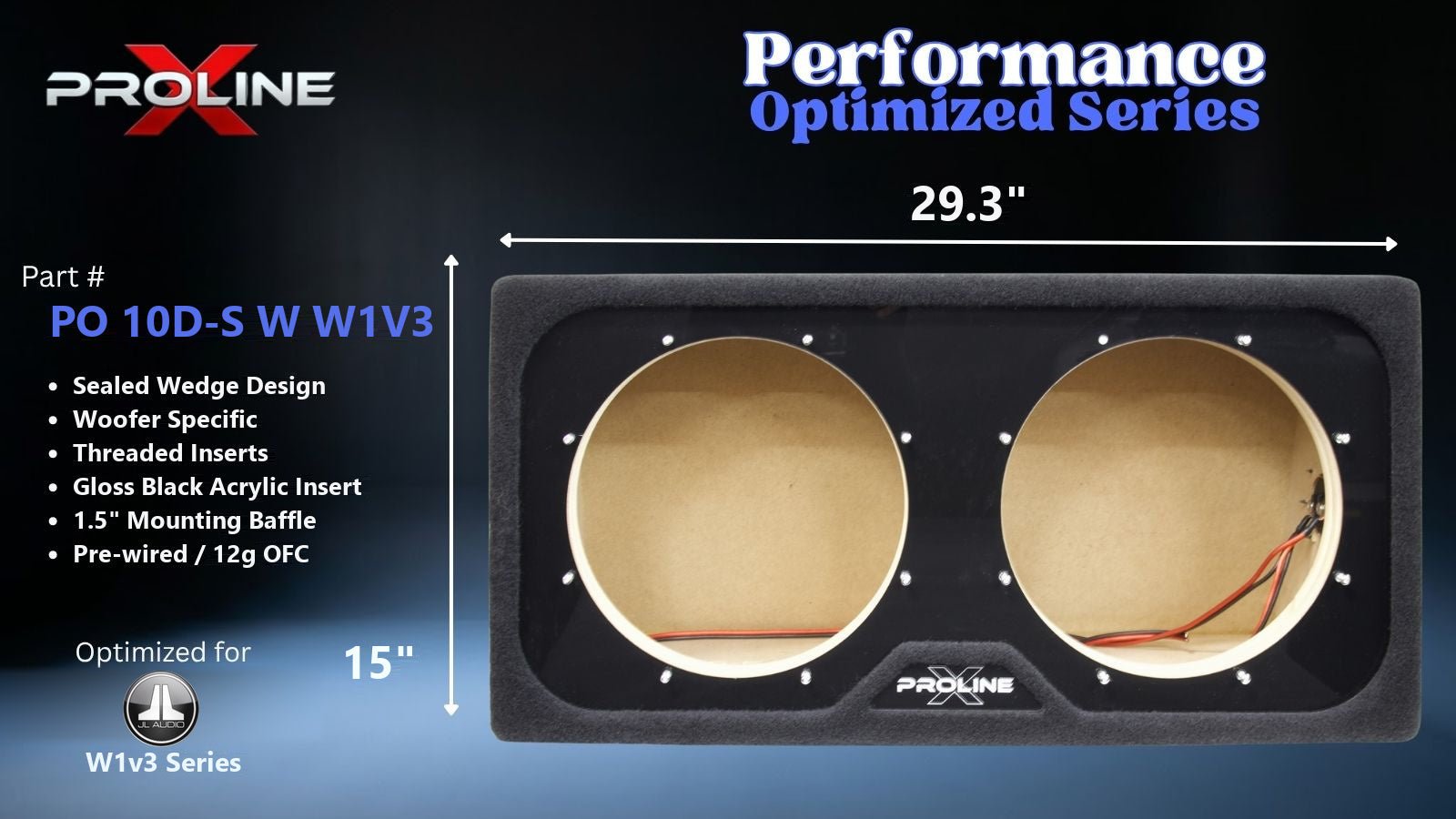

• Width: 29.29 in

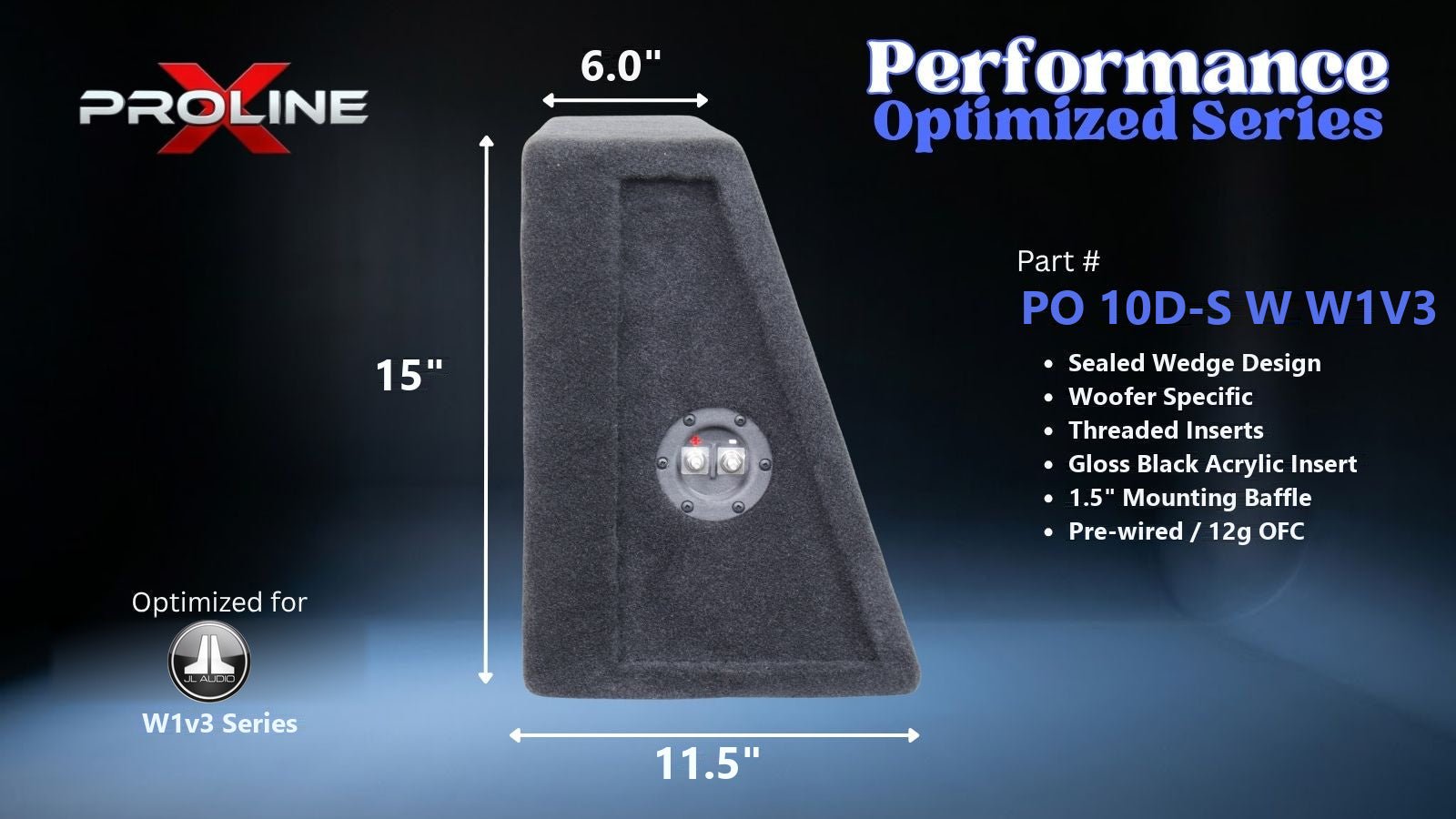

• Depth: 6.04 in
• Front baffle: Double layer, 1.5 in
• Chambers: One per driver
• Fits: JL Audio 10W1v3
