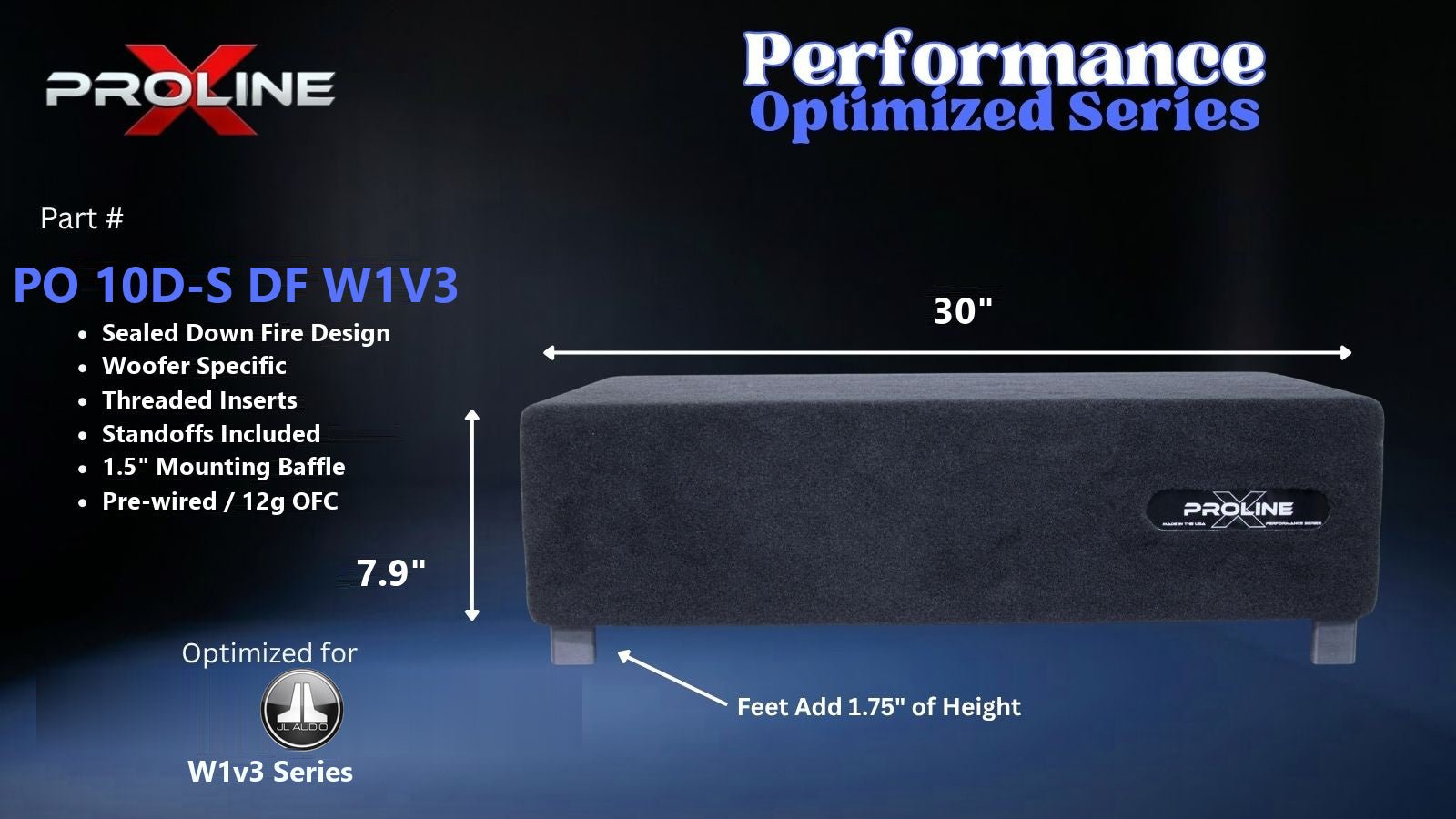

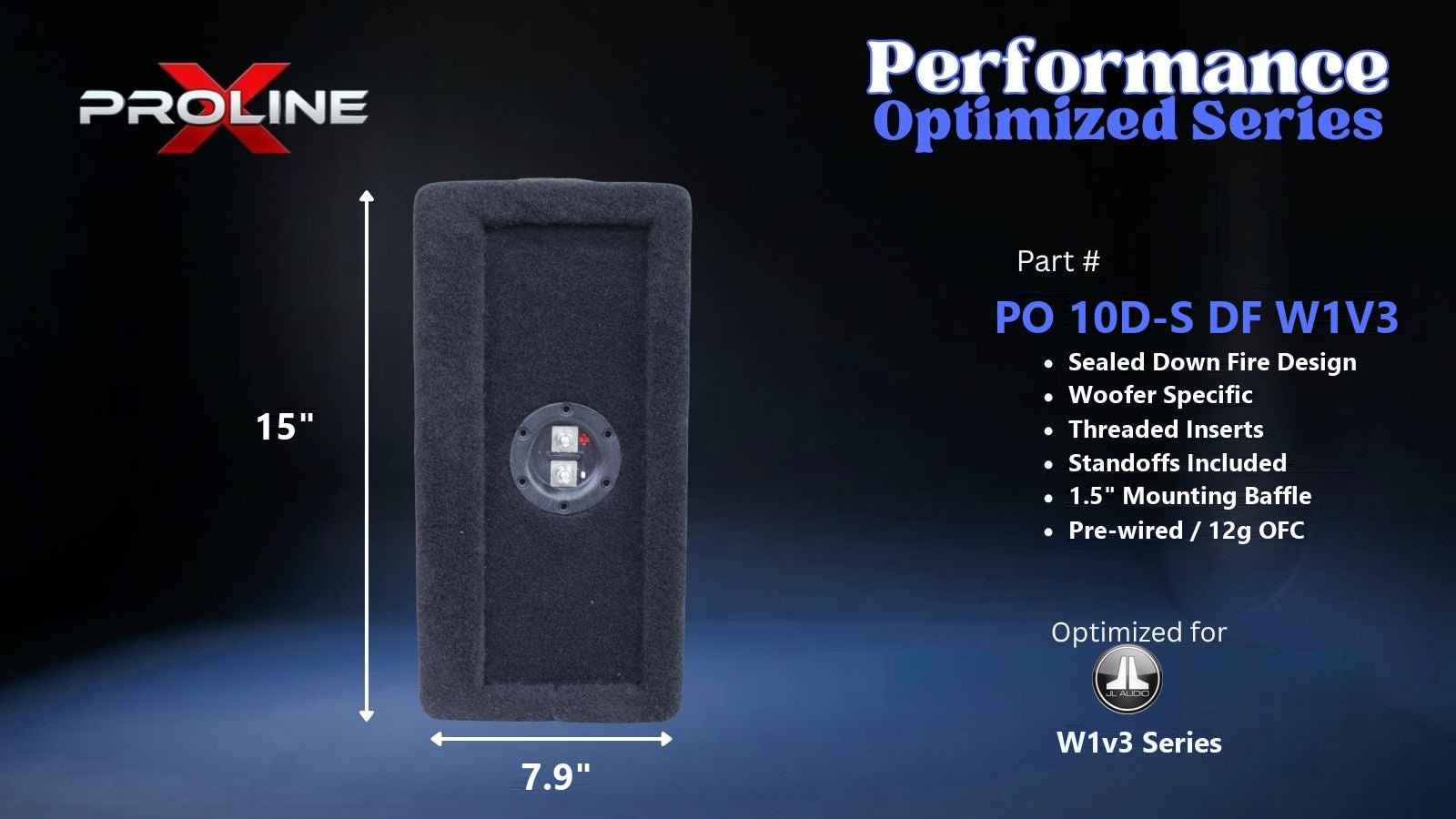

JL Audio 10W1v3 Sealed Down Fire Enclosure, Dual 10″

JL Audio 10W1v3 dual sealed down fire enclosure, 10-inch, with 1.1 cubic feet of net airspace at a system Qtc of 0.85-0.87 and an anechoic F3 of 42.3 Hz.

A Qtc of 0.85-0.87 puts a modest lift at the corner, which most listeners hear as extra punch without the box growing. The rolloff below it is a touch steeper than Butterworth.

Firing into the floor, the sealed rolloff meets rising cabin gain below about 60 Hz, so in-car extension runs below the anechoic figure above.

The baffle faces the floor, which keeps cargo off the cone and leaves a flat top you can load on.

Construction: 3/4-inch MDF with a double-layer 1.5-inch front baffle, the outer layer recessed so the driver sits flush, V-groove and dado joinery at the panel seams. Carpeted in black, polyfill pre-installed and pre-wired terminal cup fitted.

Check your driver's mounting depth against the 4.6-inch figure in the specifications. Each driver has its own sealed chamber. Not sure the driver matches? Send us the model number and we will check it against the spec sheet before you order.

Questions on fit or matching? Call or text (775) 541-2950 with your vehicle and the gear you are running.

Specifications

• Enclosure type: Sealed
• Drivers: Dual, 10-inch
• Net volume: 1.1 cu ft
• System Qtc: 0.85-0.87
• F3 (anechoic): 42.3 Hz
• Max driver mounting depth: 4.6 in
• Height: 7.87 in
• Width: 30 in
• Depth: 4.6 in
• Front baffle: Double layer, 1.5 in
• Chambers: One per driver
• Fits: JL Audio 10W1v3
