Image Dynamics IDMAX12 V4 Sealed Wedge Enclosure, Dual 12″

Image Dynamics IDMAX12 V4 dual sealed wedge enclosure, 12-inch, with 1.25 cubic feet of net airspace at a system Qtc of 2.

At Qtc 2 the box is small for the driver and the response peaks before it falls away. It is the right call where space is the constraint and output per cubic foot matters.

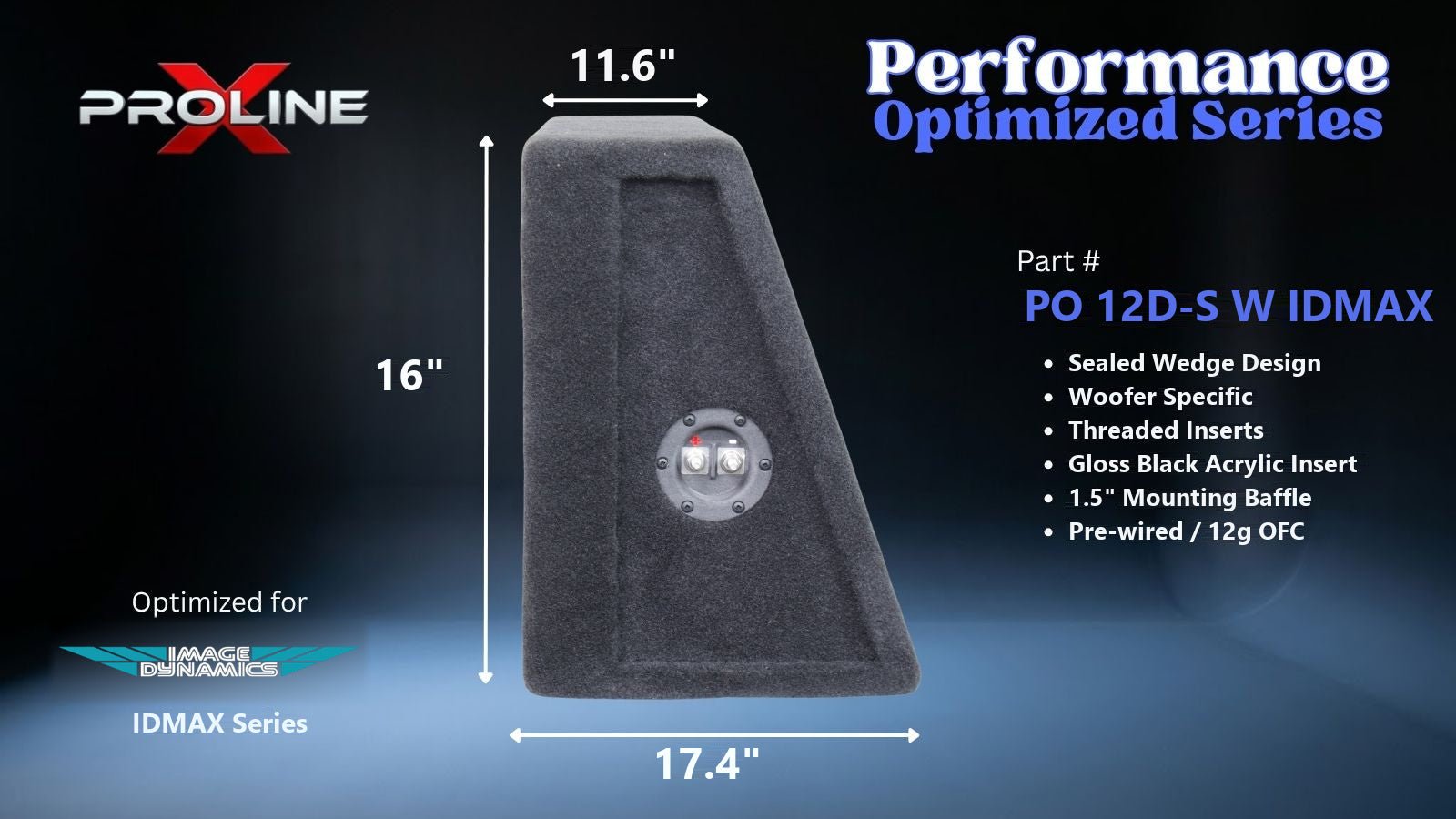

Wedge enclosures follow the seat-back angle and fire rearward into the trunk, which acts as an acoustic extension of the box.

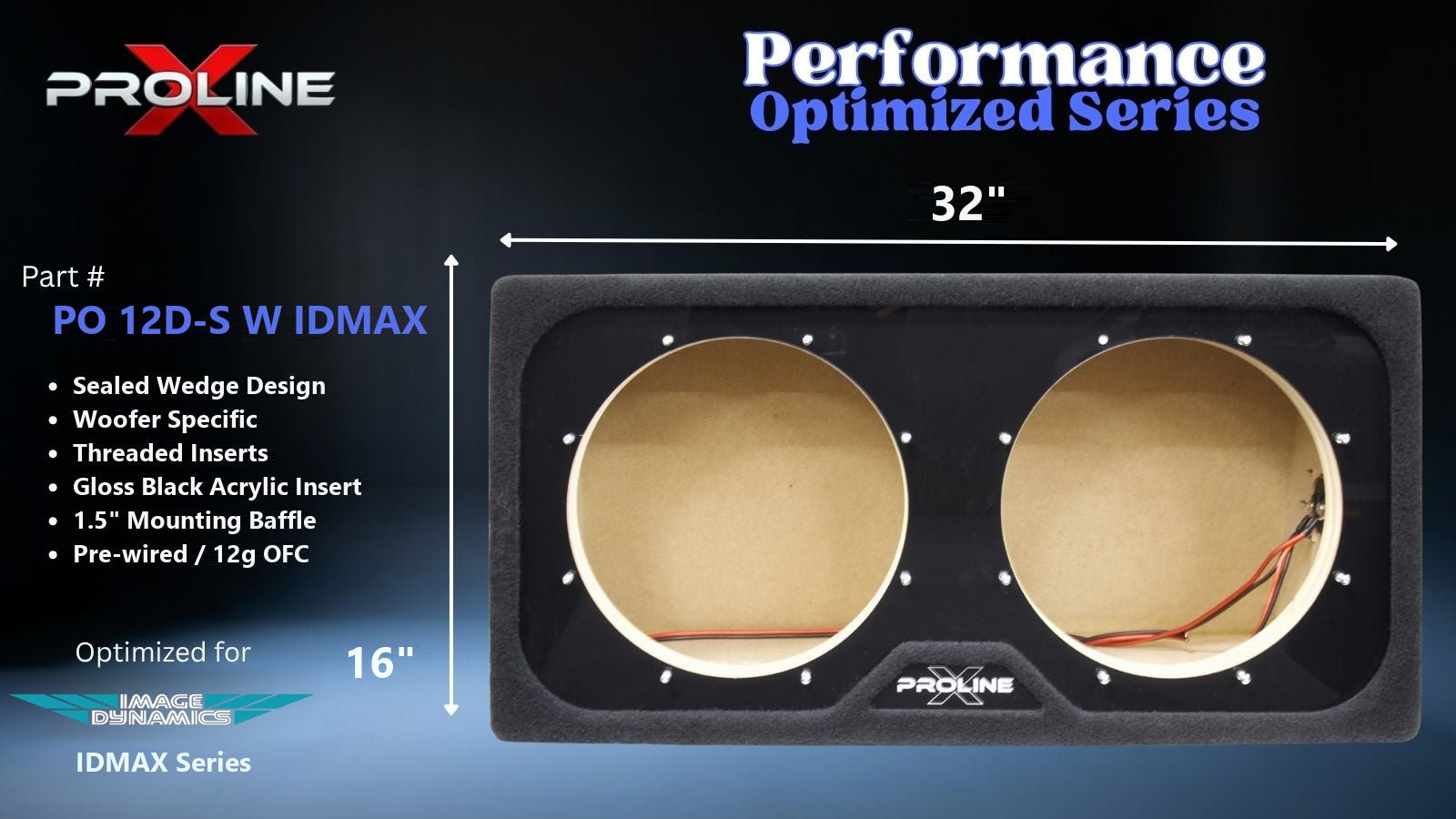

Construction: 3/4-inch MDF with a double-layer 1.5-inch front baffle, the outer layer recessed so the driver sits flush, V-groove and dado joinery at the panel seams. Carpeted in black and pre-wired terminal cup fitted.

Check your driver's mounting depth against the 11.024-inch figure in the specifications. Each driver has its own sealed chamber. If you are between two drivers, send both model numbers and we will tell you which one this volume suits.

Questions on fit or matching? Call or text (775) 541-2950 with your vehicle and the gear you are running.

Specifications

• Enclosure type: Sealed
• Drivers: Dual, 12-inch
• Net volume: 1.25 cu ft
• System Qtc: 2
• Max driver mounting depth: 11.024 in
• Front baffle: Double layer, 1.5 in
• Chambers: One per driver
• Fits: Image Dynamics IDMAX12 V4
