Focal SUB 30 KXE Sealed Down Fire Wide Enclosure, Dual 12″

Focal SUB 30 KXE dual sealed down fire wide enclosure, 12-inch, with 0.858 cubic feet of net airspace at a system Qtc of 0.804 and an anechoic F3 of 45.3 Hz.

At Qtc 0.804 the response rises slightly before it rolls off. In a trunk or cab that reads as weight on kick drums rather than boom.

Firing into the floor, the sealed rolloff meets rising cabin gain below about 60 Hz, so in-car extension runs below the anechoic figure above.

Down-firing puts the cone against the floor: protected from whatever rides in the trunk, with a usable flat top. The wide format spreads the volume across the trunk rather than back into it, keeping depth short.

Construction: 3/4-inch MDF with a double-layer 1.5-inch front baffle, the outer layer recessed so the driver sits flush, V-groove and dado joinery at the panel seams. Carpeted in black, polyfill pre-installed and pre-wired terminal cup fitted.

Check your driver's mounting depth against the 6.77-inch figure in the specifications. Each driver has its own sealed chamber. The published figures are for the dual 4 ohm versions of the driver. If you are between two drivers, send both model numbers and we will tell you which one this volume suits.

Questions on fit or matching? Call or text (775) 541-2950 with your vehicle and the gear you are running.

Specifications

• Enclosure type: Sealed
• Drivers: Dual, 12-inch
• Net volume: 0.858 cu ft
• System Qtc: 0.804
• F3 (anechoic): 45.3 Hz
• Max driver mounting depth: 6.77 in

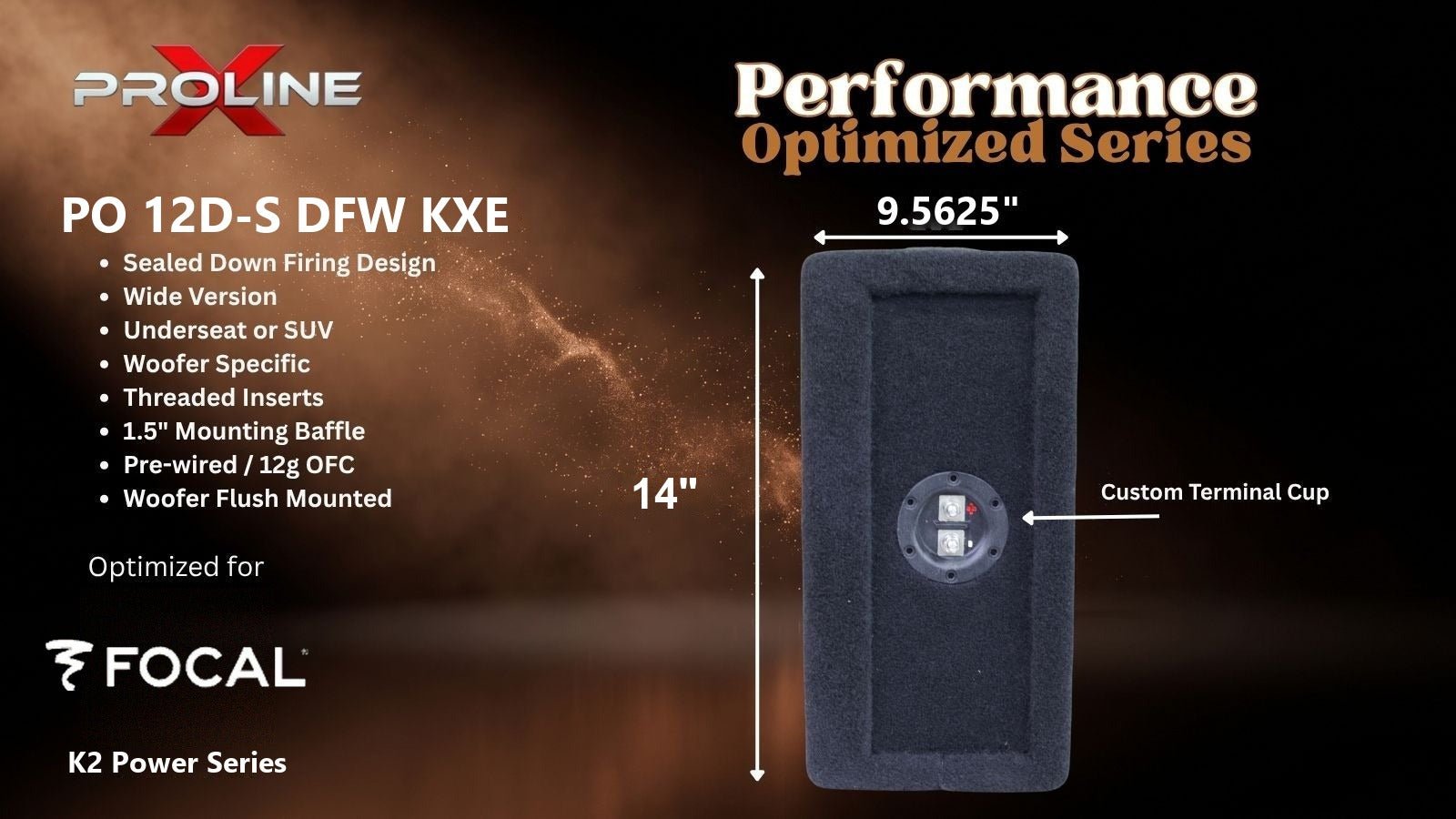

• Height: 9.5625 in

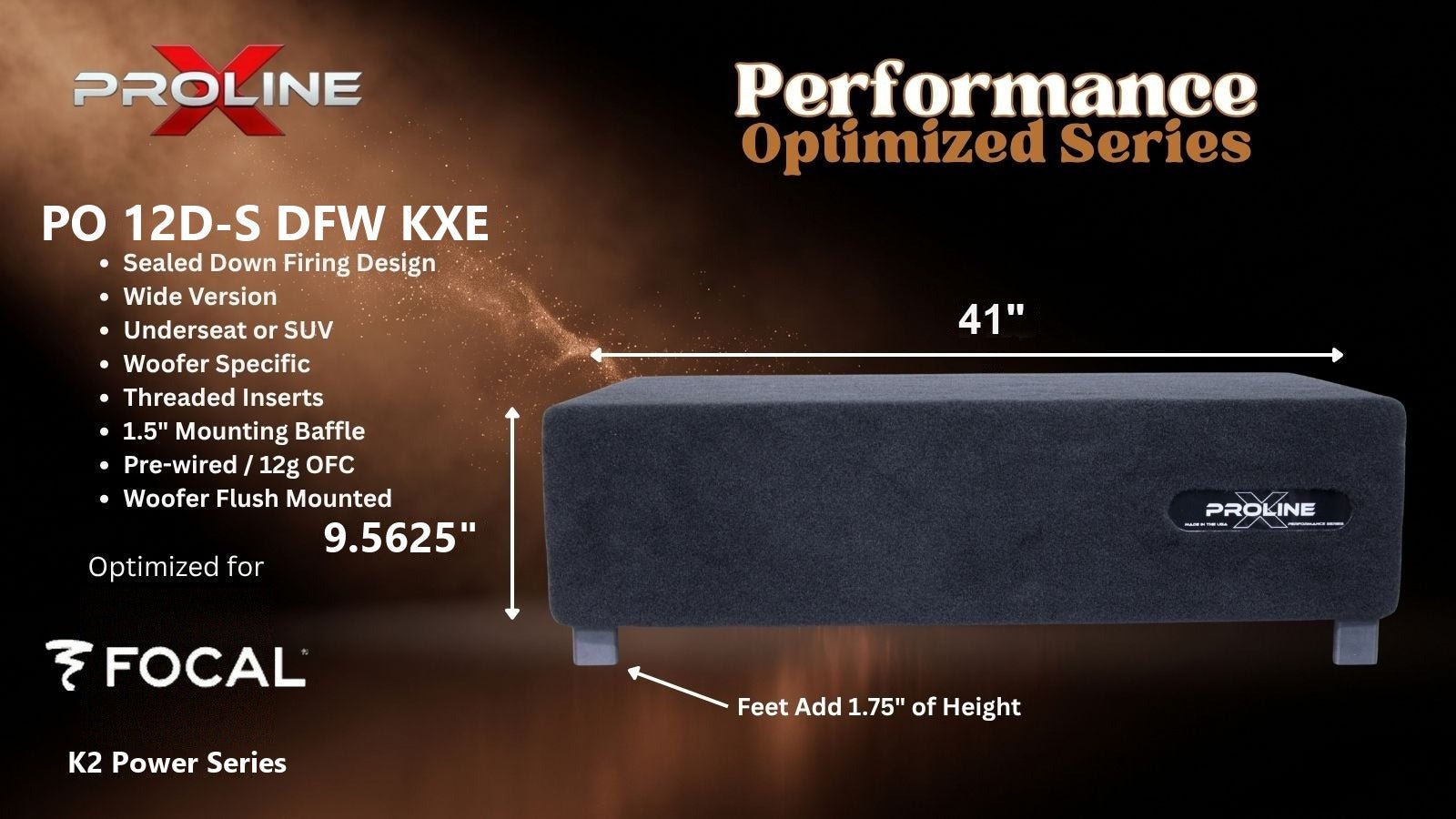

• Width: 41 in
• Depth: 14 in
• Front baffle: Double layer, 1.5 in
• Chambers: One per driver
• Fits: Focal SUB 30 KXE
